Members' Party — Sculpture Court

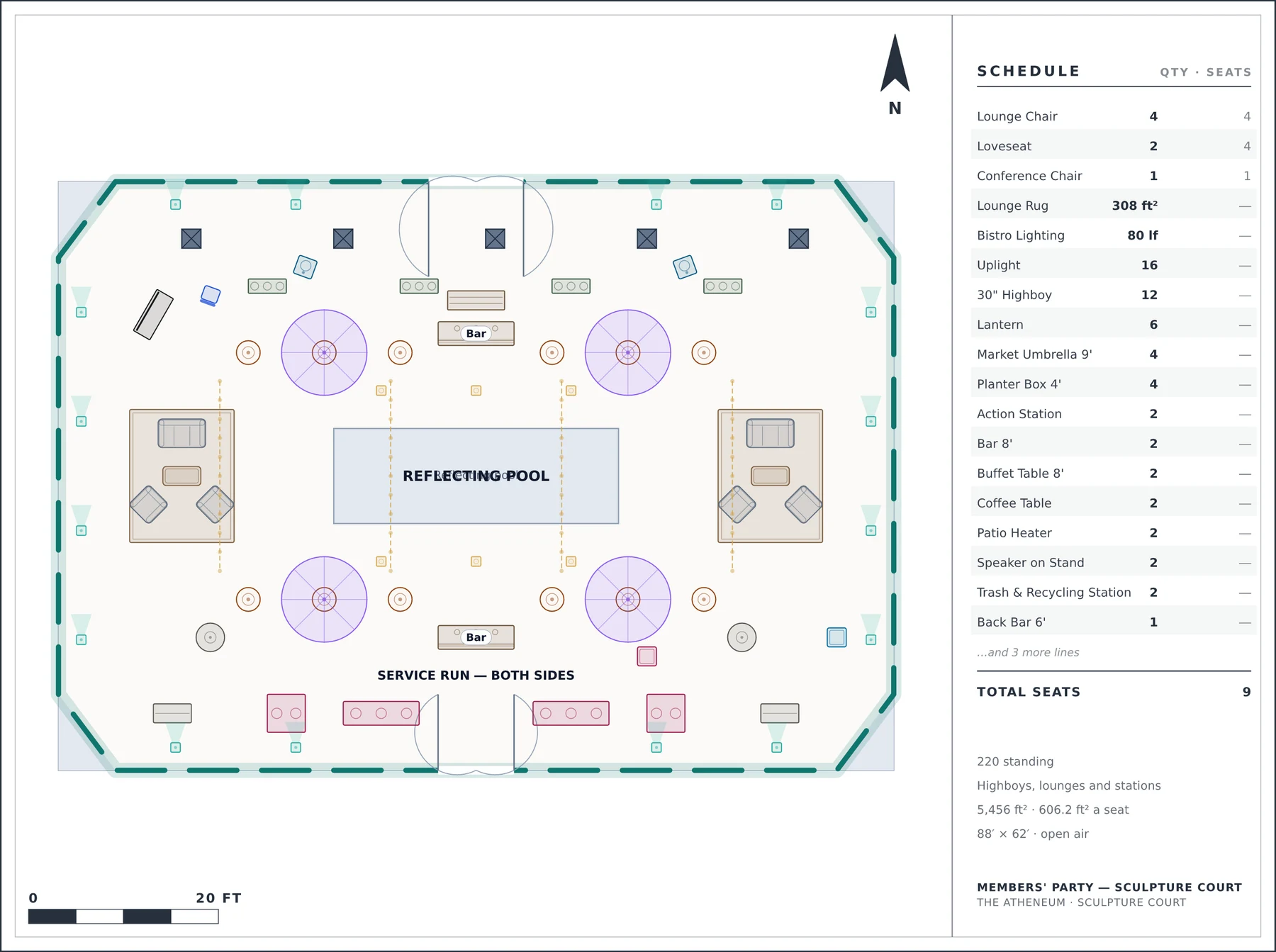

220 standing in two galleries either side of a 30′ reflecting pool.
The Atheneum · Sculpture Court · 88′ × 62′, open air
Why it is laid out this way
- The pool splits the court, so the plan serves both sides: bars at each end and food along the south wall, never one queue at one end.
- The five plinths on the north edge keep their clearance — the planting sits between them rather than in front of them.
- Umbrellas and heaters are in the plan because a courtyard party is held in whatever weather turns up.
What the plan measures
Capacity220 standing
SetupHighboys, lounges and stations
Seats placed9
Objects placed73
Event space88′ × 62′, open air
Floor area5,456 ft²
Per seat606.2 ft²
Event typeReception · Nonprofit
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
6built features, each with a real height
2typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: pavers.
