Reception — Timber Barn

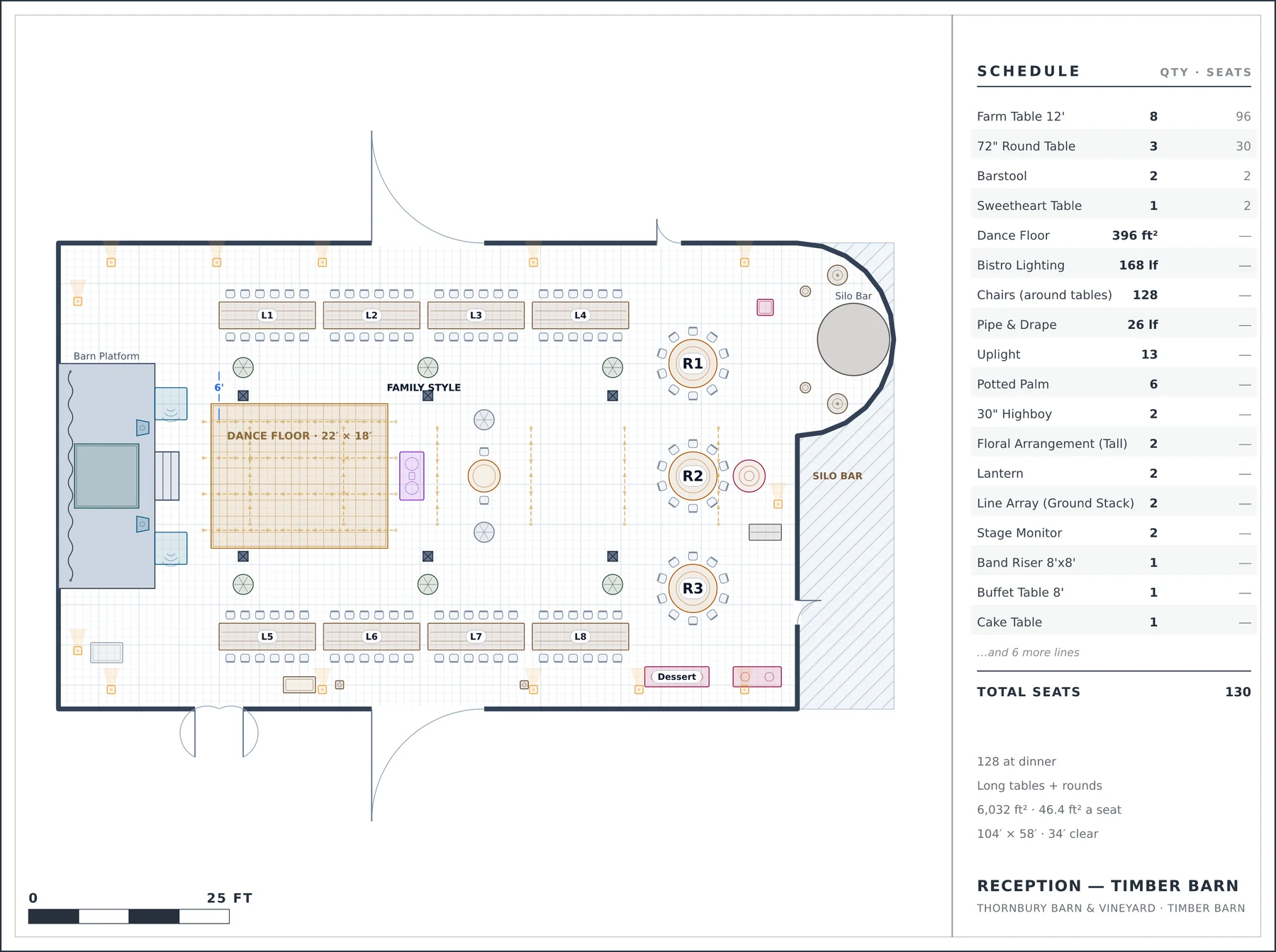

128 family style, seated around six posts instead of pretending they aren’t there.
Thornbury Barn & Vineyard · Timber Barn · 104′ × 58′, 34′ ceiling
Why it is laid out this way
- The two long runs sit OUTSIDE the post lines, so no guest spends dinner looking at a 12″ timber.
- The dance floor takes the clear bay between the first pair of posts — the only 22′ × 18′ in the barn with nothing overhead.
- The converted grain silo is the bar: off the floor, beside a door, and out of the service route to the kitchen.
What the plan measures
Capacity128 at dinner
SetupLong tables + rounds
Seats placed130
Objects placed64
Event space104′ × 58′, 34′ ceiling
Floor area6,032 ft²
Per seat46.4 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
17points in the traced perimeter
9built features, each with a real height
5typed doors, with swings
Enclosed room. Floor: hardwood. Walls: paint.
