Ceremony — Rotunda Gallery

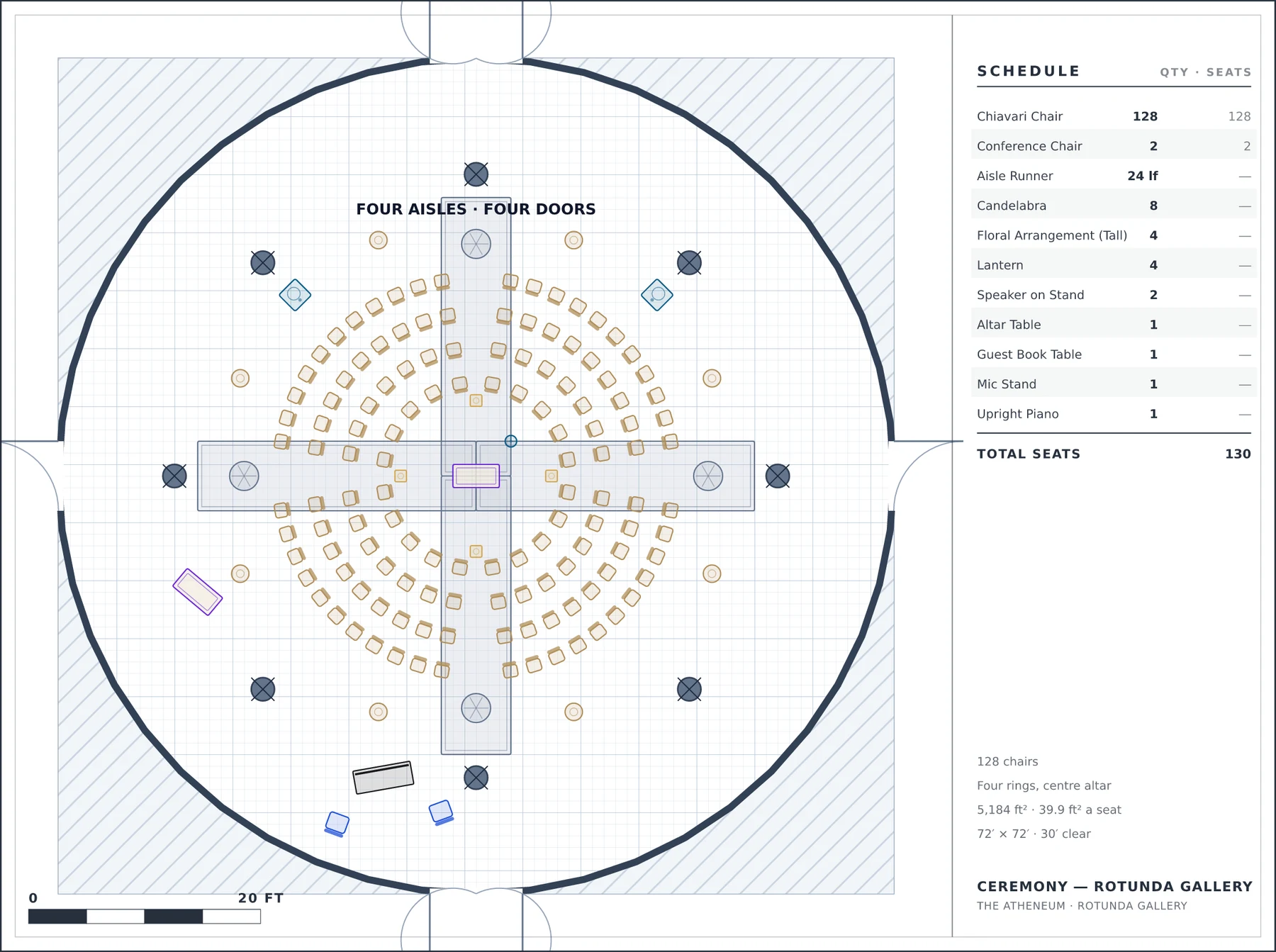

128 chairs on four rings in a true 72′ circle — a room with no front.
The Atheneum · Rotunda Gallery · 72′ × 72′, 30′ ceiling
Why it is laid out this way
- Four concentric rings, every chair turned to face the centre: a circular room does not want rows, and a grid in here wastes a third of the floor.
- Four 20° aisles run out to the four doors on the cardinals — the wedding party enters from all four sides at once, which is a thing this room can do.
- Everything stays inside the 26′ column ring, so nobody's sightline crosses a column.
What the plan measures
Capacity128 chairs
SetupFour rings, centre altar
Seats placed130
Objects placed156
Event space72′ × 72′, 30′ ceiling
Floor area5,184 ft²
Per seat39.9 ft²
Event typeCeremony · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
48points in the traced perimeter
8built features, each with a real height
4typed doors, with swings
Enclosed room. Floor: stone. Walls: paint.
