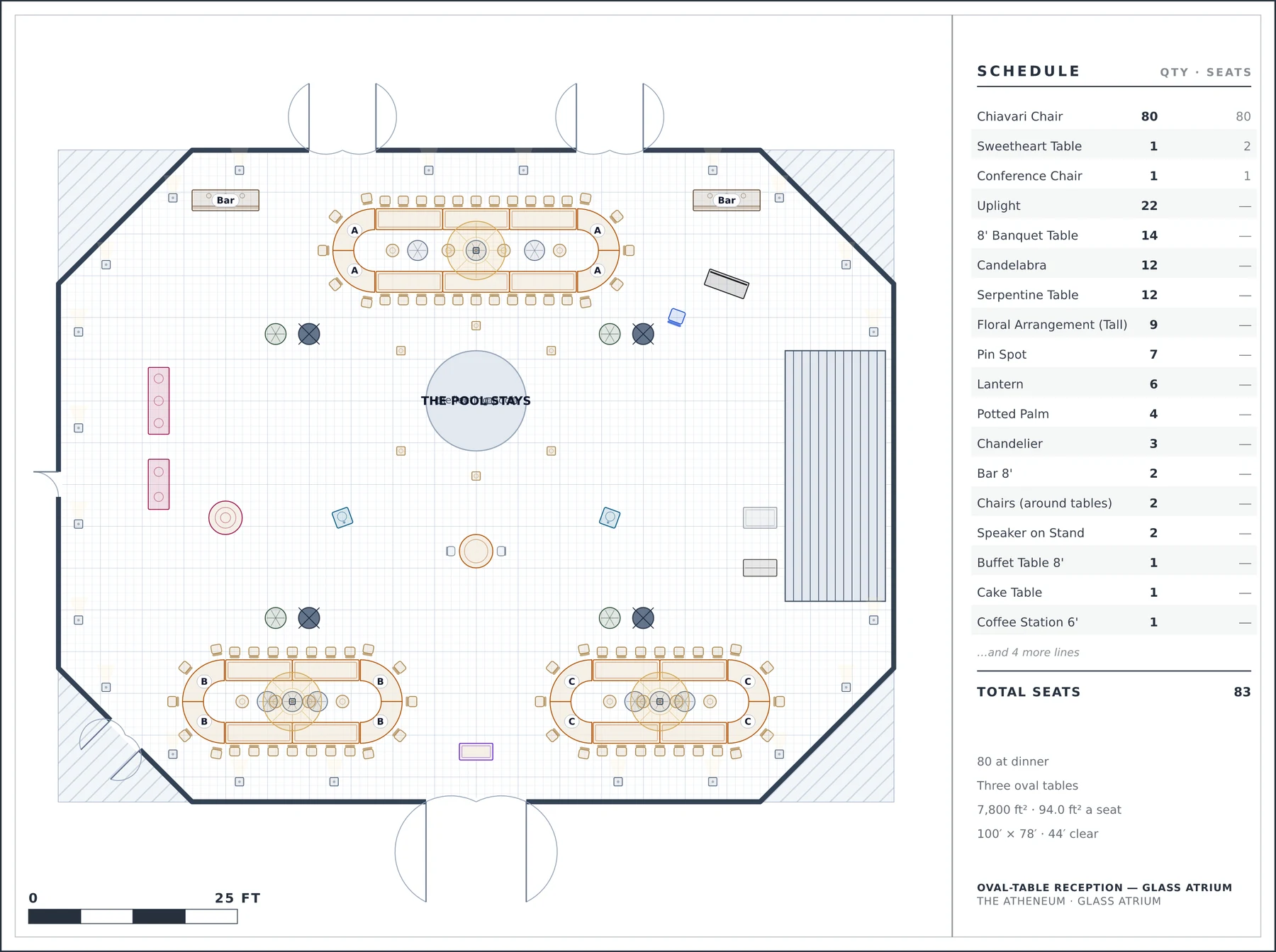

Oval-Table Reception — Glass Atrium
80 covers on three ovals — serpentine half-rings joined by a straight run.
The Atheneum · Glass Atrium · 100′ × 78′, 44′ ceiling
Why it is laid out this way
- An oval is two serpentine half-rings joined by a straight run — covers on the outside only, at 2′ 2″ each, and a 5′ well down the middle the florist fills.
- All three are laid AROUND the reflecting pool, not over it — the pool is the centrepiece the room already owns, so the plan rings it in lanterns and leaves it alone.
- Every chandelier hangs at 22′ under the skylight and every pin spot at 30′, so the floor plan underneath stays a floor plan.
What the plan measures
Capacity80 at dinner
SetupThree oval tables
Seats placed83
Objects placed182
Event space100′ × 78′, 44′ ceiling
Floor area7,800 ft²
Per seat94.0 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
6built features, each with a real height
5typed doors, with swings
Enclosed room. Floor: stone. Walls: glass.
