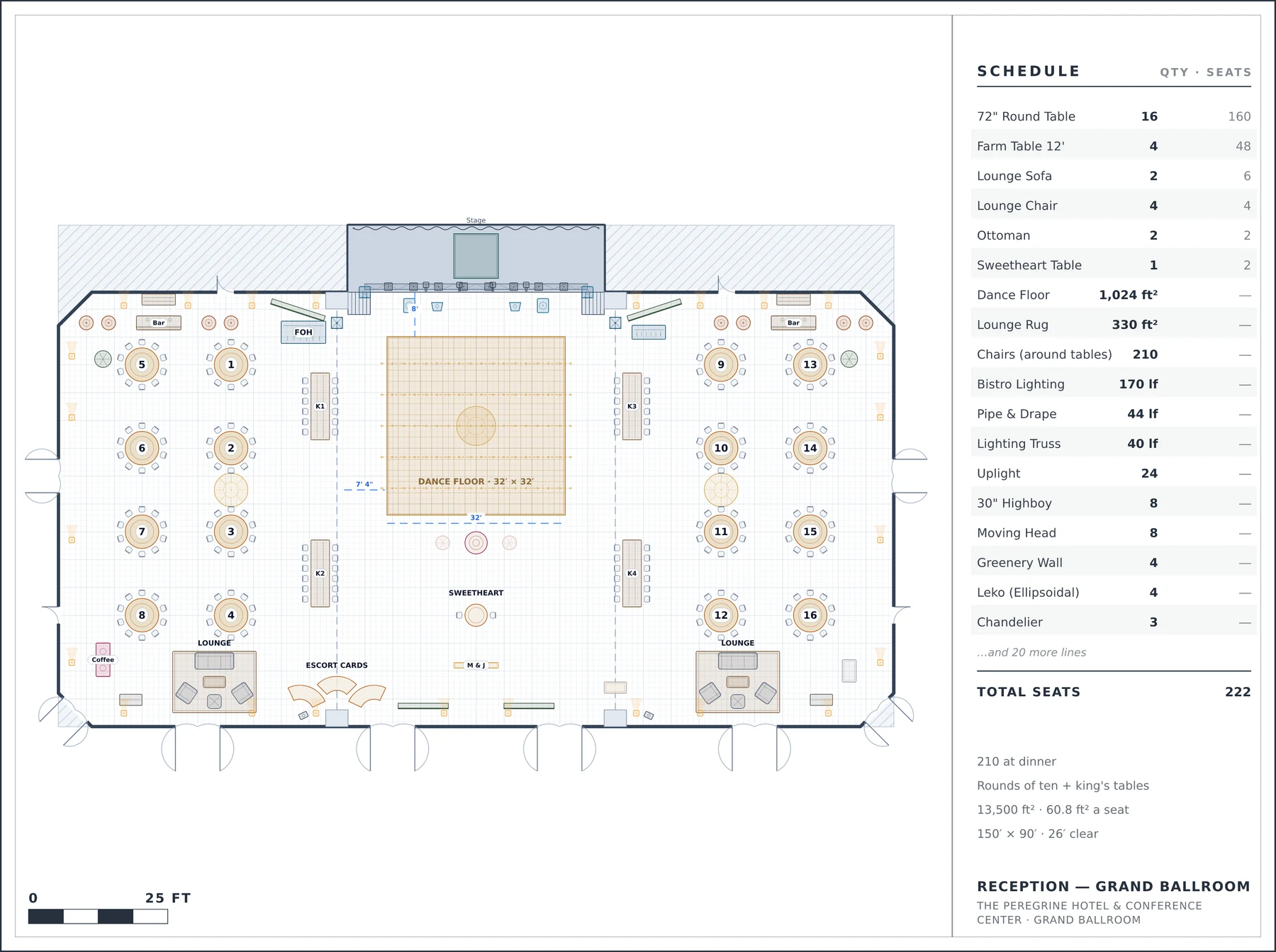

Reception — Grand Ballroom
210 at dinner, one clean sightline from the band to the couple.
The Peregrine Hotel & Conference Center · Grand Ballroom · 150′ × 90′, 26′ ceiling
Why it is laid out this way
- The band plays from the ballroom’s own 46′ stage, so the axis of the room — stage, dance floor, cake, couple — is the venue’s, not an invention.
- Sixteen rounds of ten and four 12′ king’s tables on a 15′ pitch — 4′ 5″ of real aisle between chair backs.
- Every uplight is on the wall on equal centres, with nothing in a doorway and nothing in the airwall pockets — a lighting plot, not a mood board.
What the plan measures
Capacity210 at dinner
SetupRounds of ten + king's tables
Seats placed222
Objects placed123
Event space150′ × 90′, 26′ ceiling
Floor area13,500 ft²
Per seat60.8 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
12points in the traced perimeter
7built features, each with a real height
12typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
