Runway — Grand Ballroom B+C
Two-thirds of a ballroom, derived — not a second floor plan.
The Peregrine Hotel & Conference Center · Grand Ballroom (sections BC) · 100′ × 90′, 26′ ceiling
Why it is laid out this way

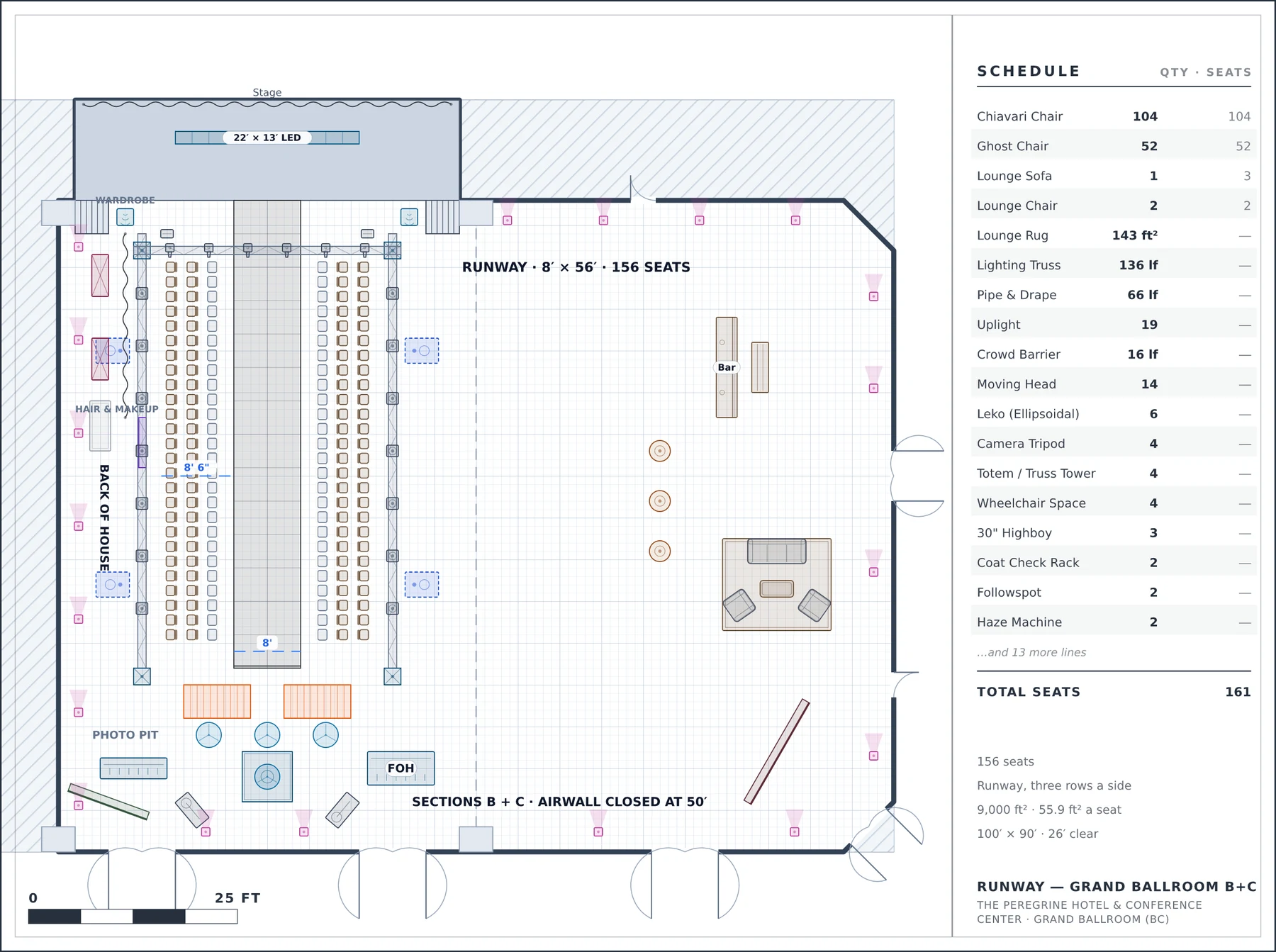

- The room was drawn once at 150′ × 90′. B+C is computed: the wall, the area, the doors and the labels recompute.
- The venue’s permanent stage is the top of the runway; 156 seats in three rows a side on 1′ 9″ centres — a fashion row, not a banquet row.
- Side trusses run the full length of the runway; the photo pit is barricaded at the end.
What the plan measures
Capacity156 seats
SetupRunway, three rows a side
Seats placed161
Objects placed241
Event space100′ × 90′, 26′ ceiling
Floor area9,000 ft²
Per seat55.9 ft²
Event typeReception · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
10points in the traced perimeter
7built features, each with a real height
7typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering. Drawn in airwall combination BC.
