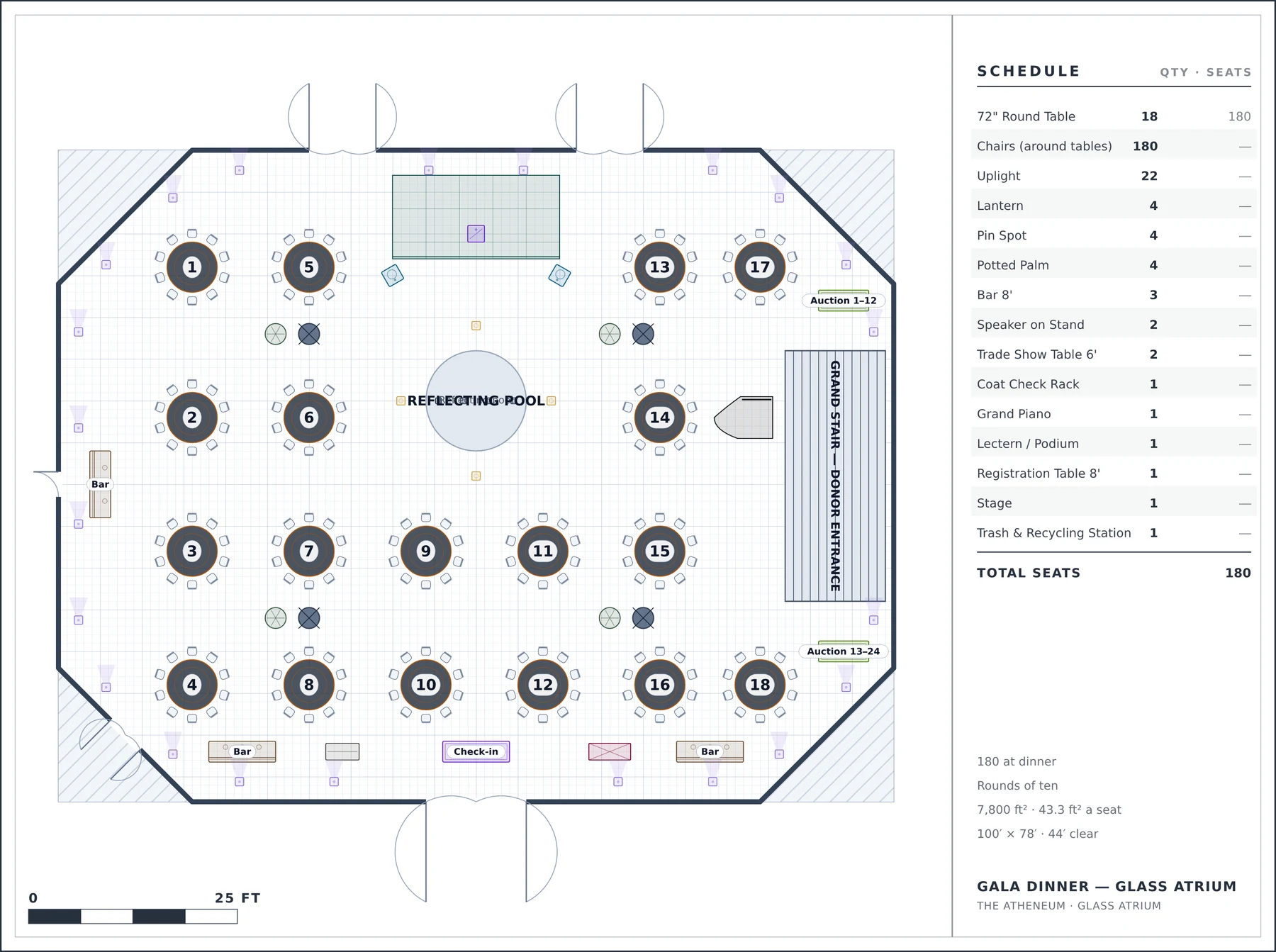

Gala Dinner — Glass Atrium
180 at dinner in the ring a reflecting pool and a grand stair leave behind.
The Atheneum · Glass Atrium · 100′ × 78′, 44′ ceiling
Why it is laid out this way
- The usable floor here is a ring, not a rectangle: four of the twenty-two tables a grid would place land in the water, so they are not in the plan.
- The grand stair is left clear as the donors' entrance — the most valuable thing in the building, and it costs nothing to use it.
- Silent auction runs the east wall under the stair, where a queue has somewhere to go that is not between the tables.
What the plan measures
Capacity180 at dinner
SetupRounds of ten
Seats placed180
Objects placed65
Event space100′ × 78′, 44′ ceiling
Floor area7,800 ft²
Per seat43.3 ft²
Event typeCatered Meal · Nonprofit
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
6built features, each with a real height
5typed doors, with swings
Enclosed room. Floor: stone. Walls: glass.
