Couture Reception — Grand Ballroom

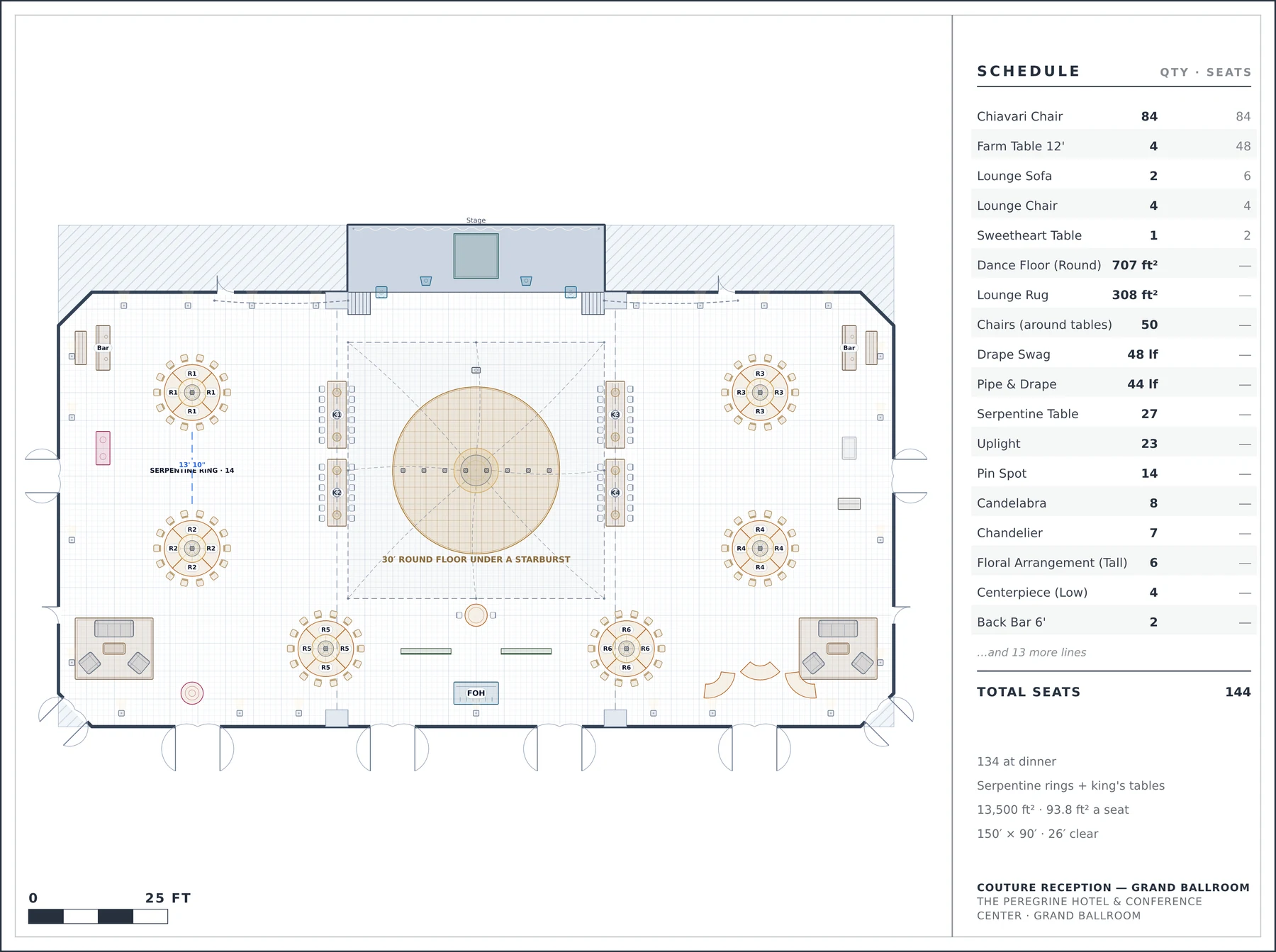

134 at serpentine rings — the same ballroom that seats 210, designed instead of filled.
The Peregrine Hotel & Conference Center · Grand Ballroom · 150′ × 90′, 26′ ceiling
Why it is laid out this way
- Six serpentine rings, four 90° segments each closing a 10′ circle, with the guests seated on the outside — so every table is a circle nobody sits inside and the florist gets a 7′ well to build in.
- 100 ft² a head against 64 for the rounds plan of the same room. That is what the design costs, and it is the number to know before anybody promises a guest count.
- A 30′ round floor under a 46′ starburst drape, nine chandeliers and a pin spot over every table — all of it hung, so the floor plan underneath stays a floor plan.
What the plan measures
Capacity134 at dinner
SetupSerpentine rings + king's tables
Seats placed144
Objects placed210
Event space150′ × 90′, 26′ ceiling
Floor area13,500 ft²
Per seat93.8 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
12points in the traced perimeter
7built features, each with a real height
12typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
