Holiday Party — Four Peaks Ballroom

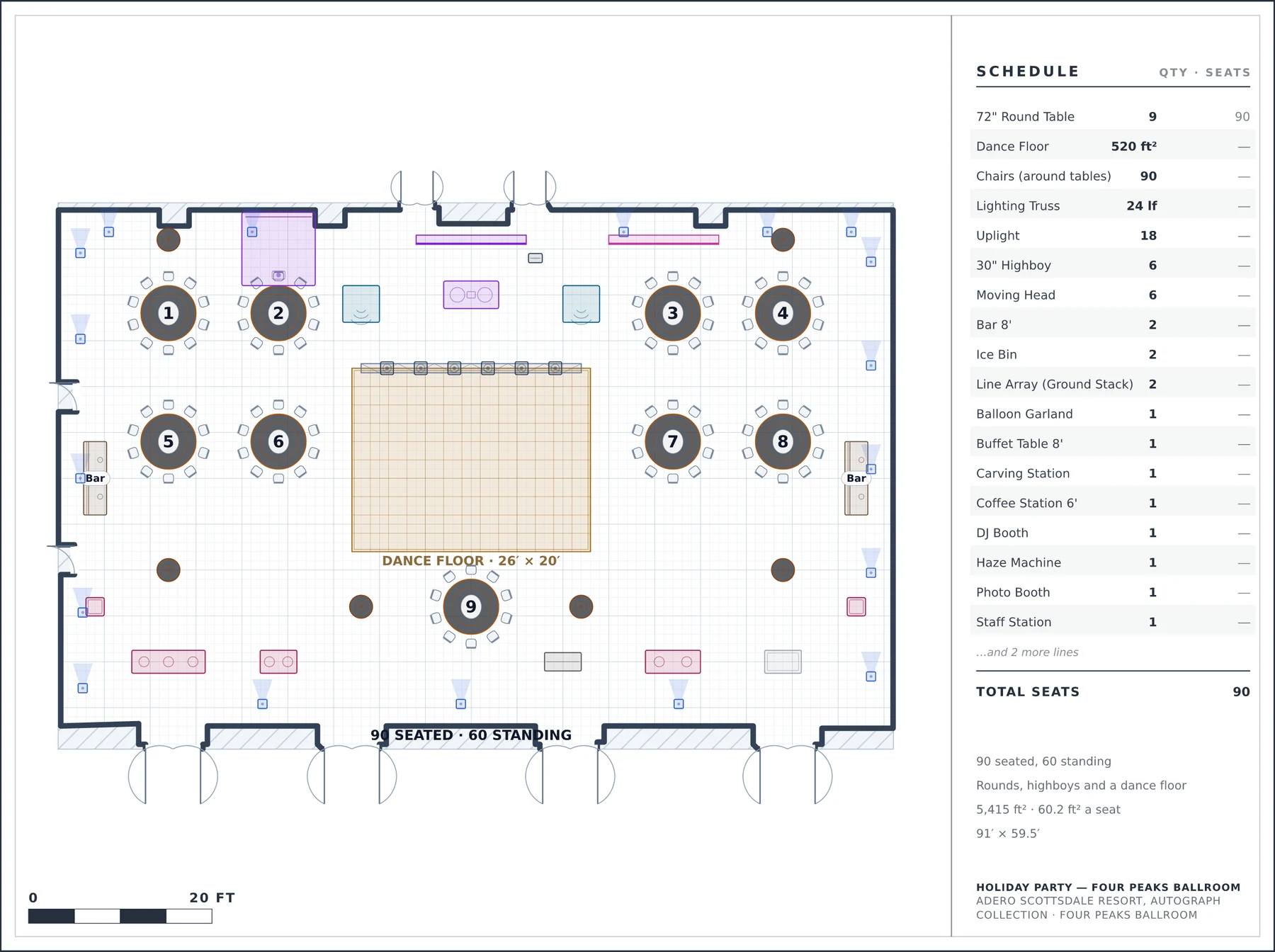

90 seats for 150 guests, on purpose — the seated half and the standing half, drawn.
ADERO Scottsdale Resort, Autograph Collection · Four Peaks Ballroom · 91′ × 59.5′
Why it is laid out this way
- Fewer seats than guests, deliberately: a holiday party goes standing by nine whatever the chart says, so a third of the room is highboys instead of covers nobody uses.
- Two bars at opposite ends rather than one long one — it halves the queue and stops the whole party collecting at one wall.
- The same real ADERO ballroom as the wedding in this gallery, with the traced recesses taking the bars and the buffet again.
What the plan measures
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
Enclosed room. Floor: carpet. Walls: wallcovering.
Where this room came from
Four Peaks Ballroom at ADERO Scottsdale Resort, Autograph Collection is a real event space. Its geometry here is reconstructed from the resort's published floor plan, and checked against the resort's published square footage, which the traced perimeter reproduces.
What the published drawing does not state, and we therefore assumed: the floor and wall finishes, which the plan does not state; the ceiling height, which the plan does not state — so it is left unset rather than guessed; the door leaf widths, set to the openings the traced recesses actually give. It is listed rather than quietly filled in, because a measurement nobody took is not a measurement.
