Imperial Table Reception — Sovereign Ballroom

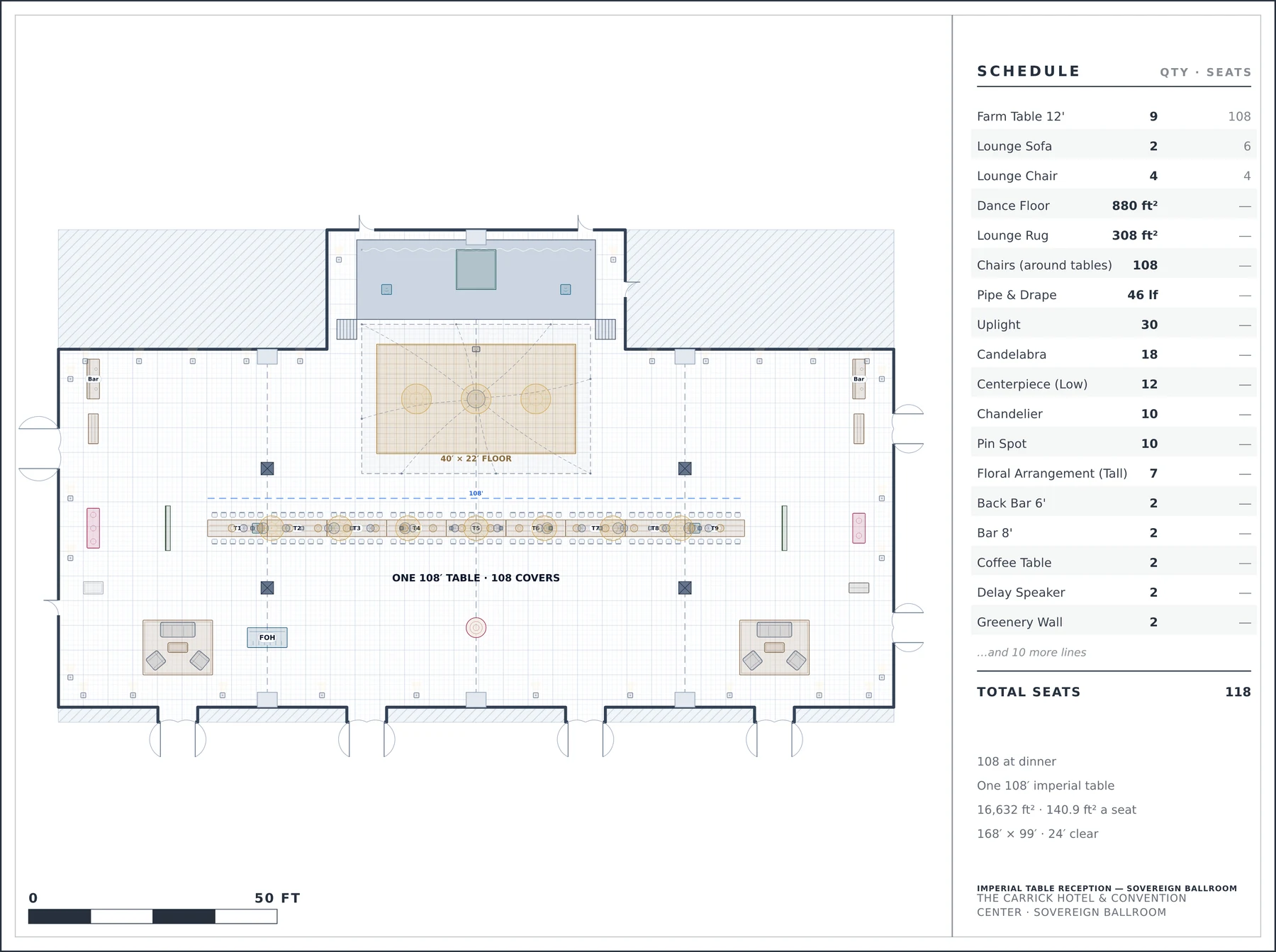

108 at a single unbroken 108′ table, threaded between two rows of columns.
The Carrick Hotel & Convention Center · Sovereign Ballroom · 168′ × 99′, 24′ ceiling
Why it is laid out this way
- Nine farm tables in one continuous run down the only 108′ band of this ballroom with nothing standing in it — between the column rows at 48′ and 72′.
- The T-bay takes the band, so the head of the table faces a stage instead of a wall, and the dance floor sits between the two.
- The floral runner, thirty-six candelabra and every taper carry a table-top elevation, so on the plan they read as the table's dressing rather than as furniture on the floor.
What the plan measures
Capacity108 at dinner
SetupOne 108′ imperial table
Seats placed118
Objects placed127
Event space168′ × 99′, 24′ ceiling
Floor area16,632 ft²
Per seat140.9 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
24points in the traced perimeter
13built features, each with a real height
11typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
