Celebration of Life — Glass Atrium

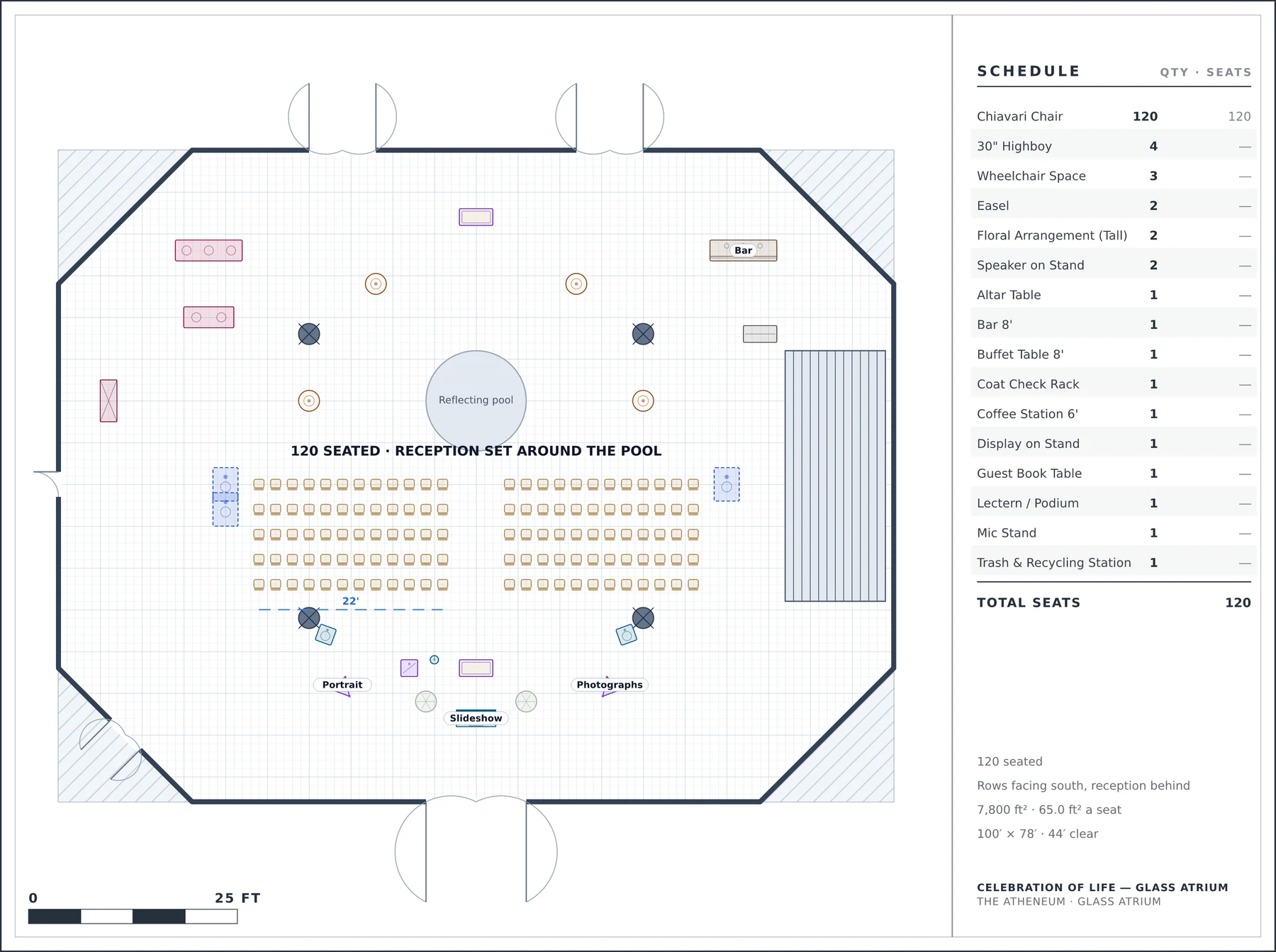

120 seated facing away from the stair, with the reception already set behind them.
The Atheneum · Glass Atrium · 100′ × 78′, 44′ ceiling
Why it is laid out this way
- The seating faces south, away from the grand stair, so the family is not watching every late arrival come down it.
- The reception is laid in around the reflecting pool before the service starts — the turn takes moving chairs and nothing else.
- Accessible spaces sit at the ends of the first two rows, on the flat, with no chairs to pass.
What the plan measures
Capacity120 seated
SetupRows facing south, reception behind
Seats placed120
Objects placed143
Event space100′ × 78′, 44′ ceiling
Floor area7,800 ft²
Per seat65.0 ft²
Event typeCeremony · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
6built features, each with a real height
5typed doors, with swings
Enclosed room. Floor: stone. Walls: glass.
