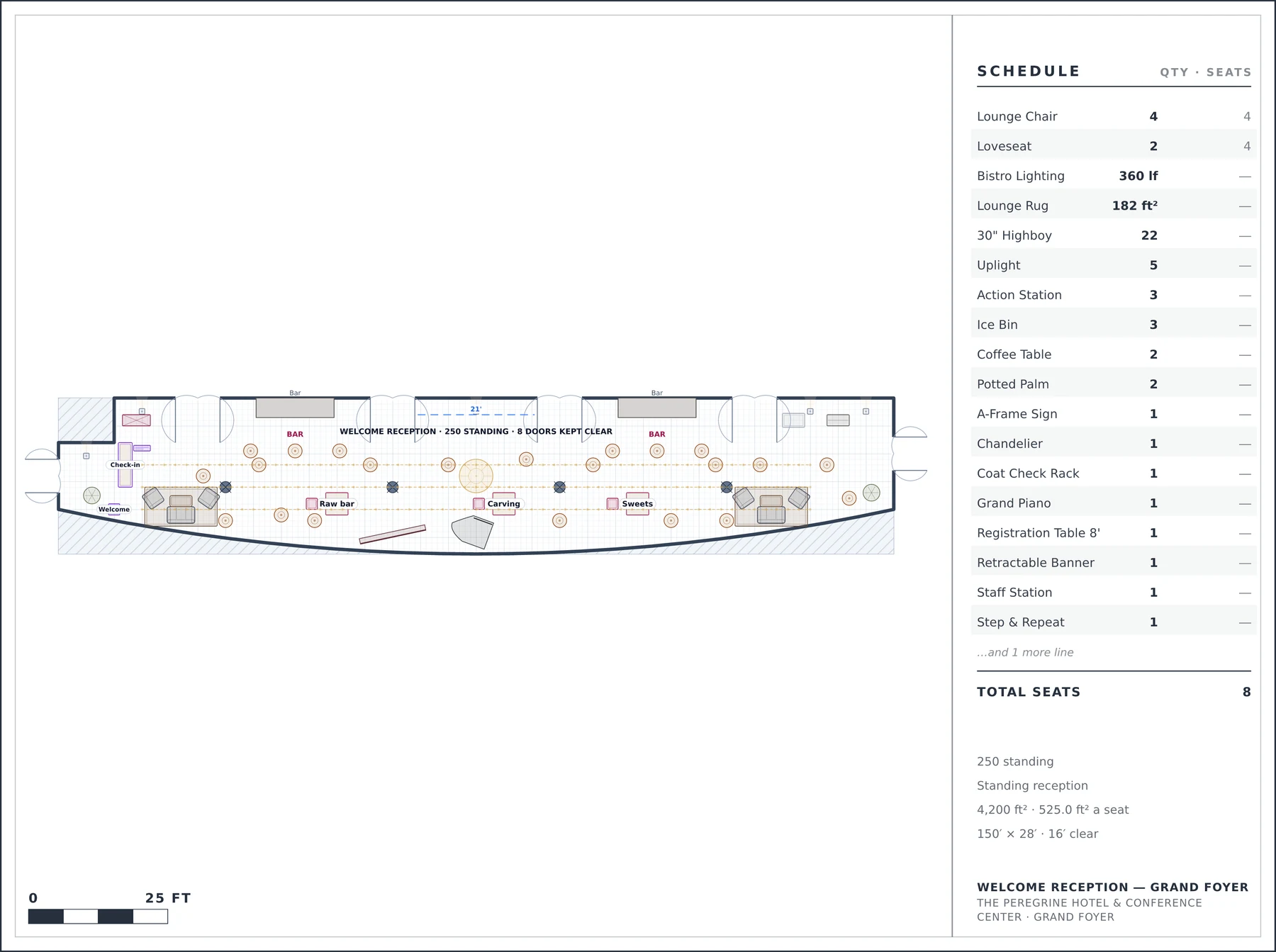

Welcome Reception — Grand Foyer
250 standing in a room made of doors — and every door swing kept clear.
The Peregrine Hotel & Conference Center · Grand Foyer · 150′ × 28′, 16′ ceiling
Why it is laid out this way
- The foyer’s two built-in bars anchor the room between the ballroom pairs; food is three double-sided islands clear of the colonnade.
- Check-in sits just inside the lobby door, so the queue never crosses the flow to the ballroom.
- Four ballroom pairs, two lobby pairs: eight door swings, all empty, so the room drains in minutes.
What the plan measures
Capacity250 standing
SetupStanding reception
Seats placed8
Objects placed57
Event space150′ × 28′, 16′ ceiling
Floor area4,200 ft²
Per seat525.0 ft²
Event typeReception · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
29points in the traced perimeter
6built features, each with a real height
6typed doors, with swings
Enclosed room. Floor: stone. Walls: glass.
