Launch Reception — Sky Terrace

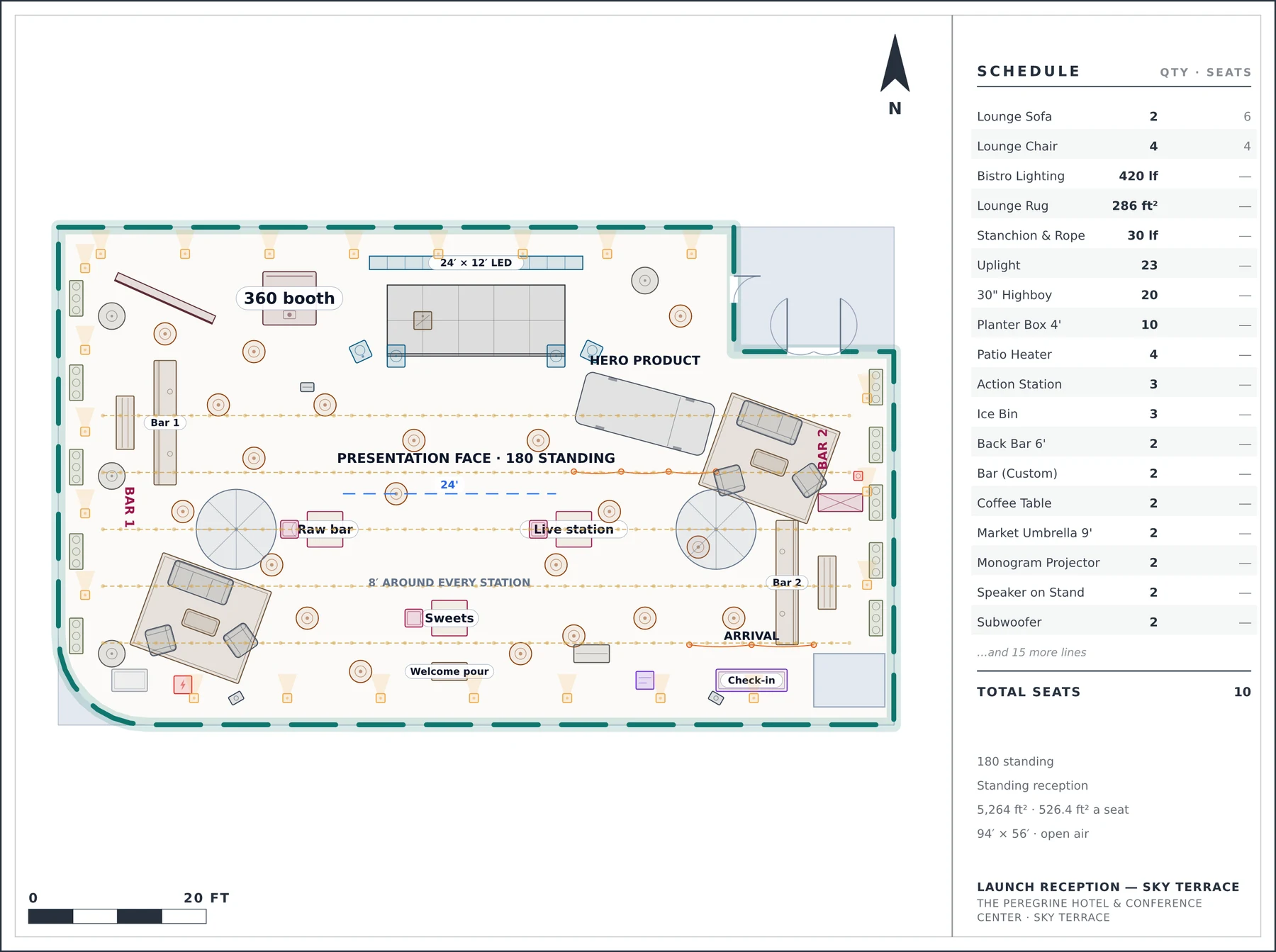

180 standing, planned by flow: two bars on opposite diagonals, 8′ around every station.
The Peregrine Hotel & Conference Center · Sky Terrace · 94′ × 56′, open air
Why it is laid out this way
- Bars sit on opposing diagonals so no single queue owns the terrace.
- Food stations are double-sided islands with 8′ of clear floor on every face.
- The LED wall faces where the crowd settles after a drink — not the door, where everyone is still arriving.
What the plan measures
Capacity180 standing
SetupStanding reception
Seats placed10
Objects placed107
Event space94′ × 56′, open air
Floor area5,264 ft²
Per seat526.4 ft²
Event typeReception · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
14points in the traced perimeter
1built features, each with a real height
2typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: pavers.
