Reception — Bayview Ballroom

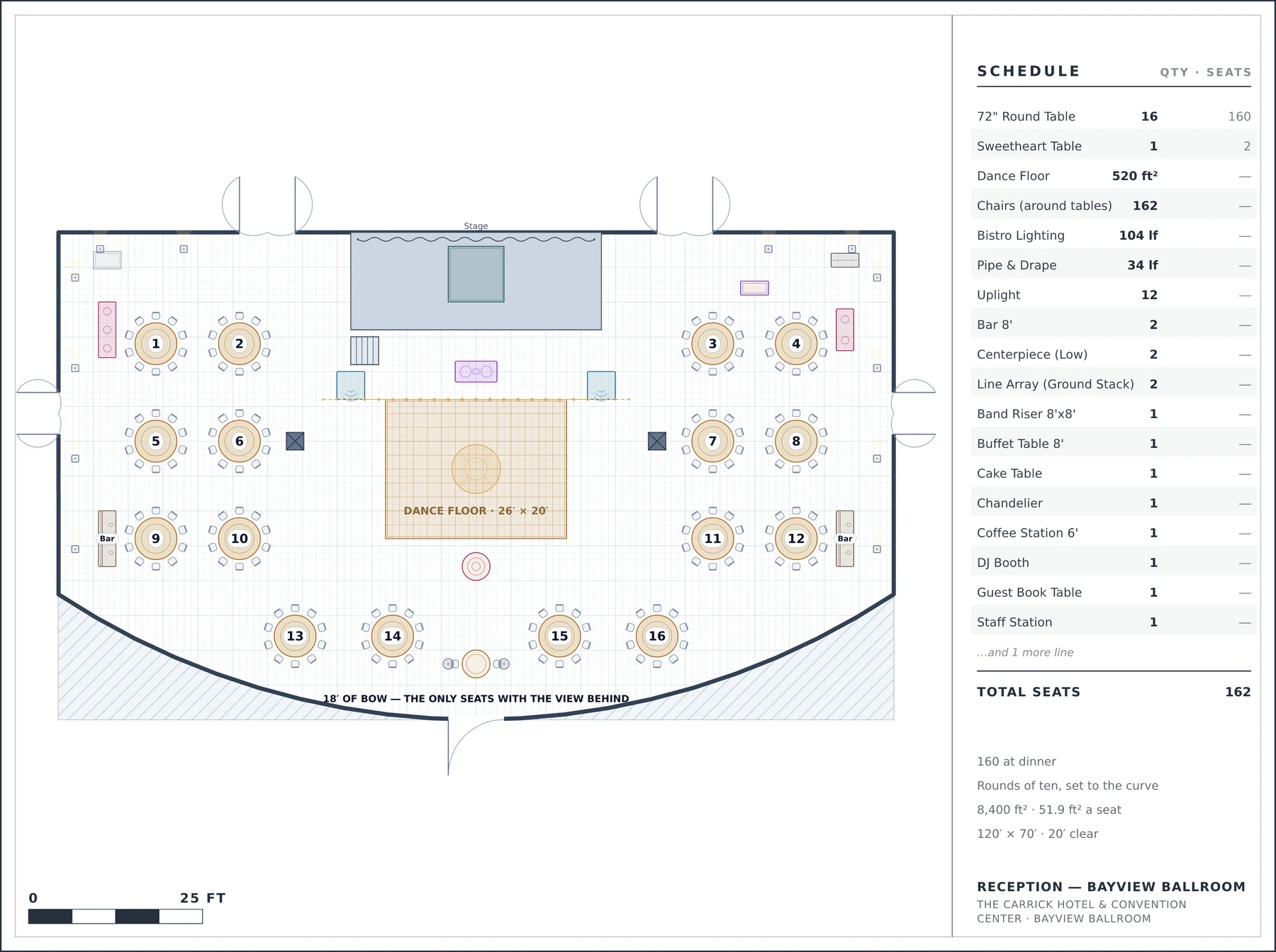

160 at dinner against an 18′ bowed window wall — one extra row in the middle, none at the ends.
The Carrick Hotel & Convention Center · Bayview Ballroom · 120′ × 70′, 20′ ceiling
Why it is laid out this way
- The south wall is a 120′ chord with an 18′ sagitta. The curve buys a whole row of rounds in the middle of the room and nothing at the sides, which is why the south row is four tables and not six.
- The couple sit in the apex of the bow — the only seats in the room with the entire view behind them.
- Drawn as a rectangle this room would put three tables in the glass and lose four more; the traced curve is the plan.
What the plan measures
Capacity160 at dinner
SetupRounds of ten, set to the curve
Seats placed162
Objects placed50
Event space120′ × 70′, 20′ ceiling
Floor area8,400 ft²
Per seat51.9 ft²
Event typeReception · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
23points in the traced perimeter
4built features, each with a real height
5typed doors, with swings
Enclosed room. Floor: carpet. Walls: glass.
