Certification Training — Carrick Junior Ballroom

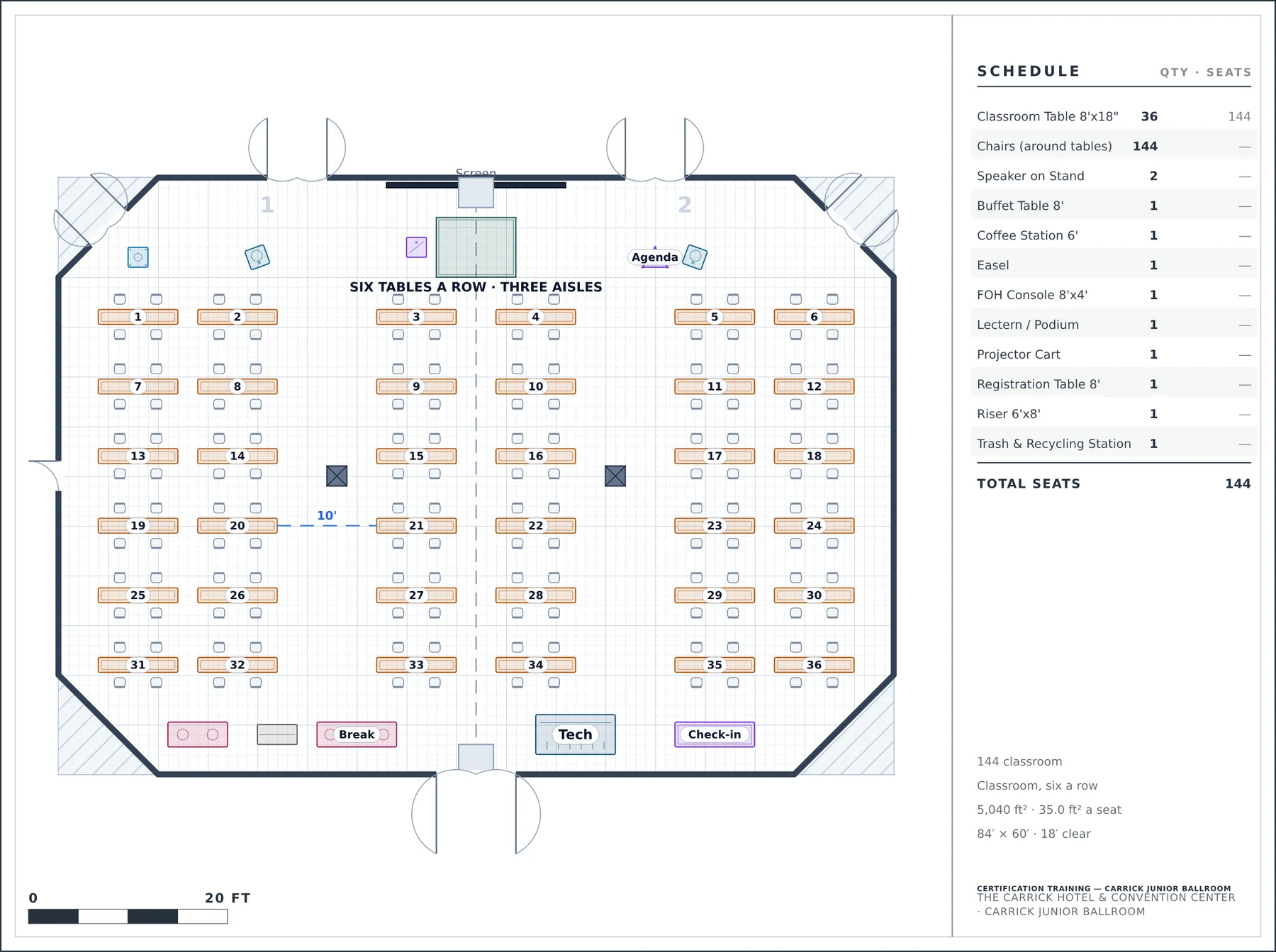

144 classroom in the three bands two columns make — six tables a row, not seven.
The Carrick Hotel & Convention Center · Carrick Junior Ballroom · 84′ × 60′, 18′ ceiling
Why it is laid out this way
- The two columns divide the room into bands 27′, 26′ and 27′ wide. Two 8′ tables fit each band; nothing fits across a column, so the row is six and the columns land in the aisles.
- The four faceted corners take the coffee, the check-in and the tech table — they are the only floor a rectangular table cannot use.
- Rows on a 7′ pitch, which leaves the writing room a classroom needs rather than the 5′ a banquet would give it.
What the plan measures
Capacity144 classroom
SetupClassroom, six a row
Seats placed144
Objects placed47
Event space84′ × 60′, 18′ ceiling
Floor area5,040 ft²
Per seat35.0 ft²
Event typeTraining · Association
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
5built features, each with a real height
6typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
