Convention Banquet — Sovereign Ballroom

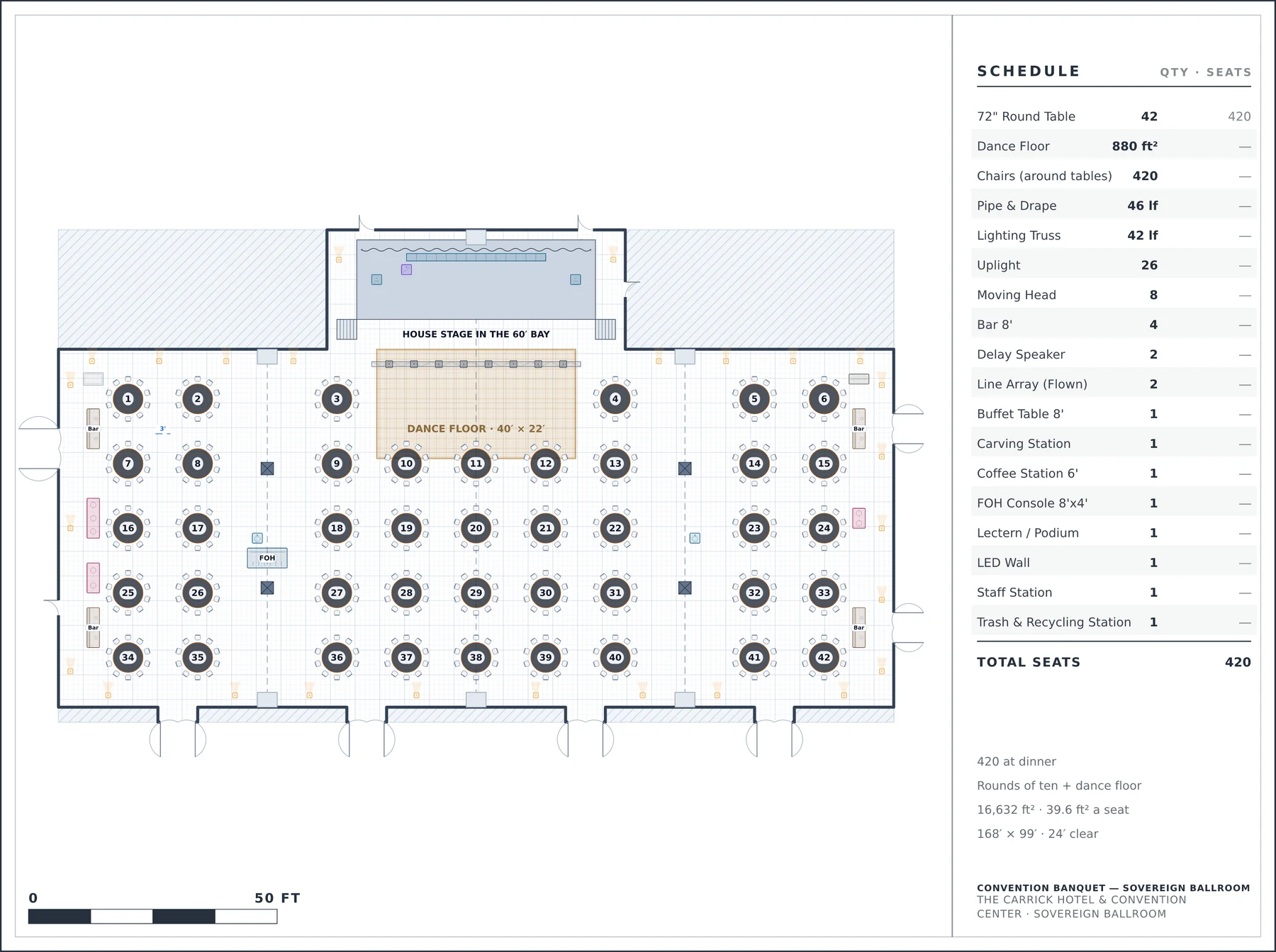

420 at dinner in a T-shaped ballroom, with the stage in the bay instead of on the floor.
The Carrick Hotel & Convention Center · Sovereign Ballroom · 168′ × 99′, 24′ ceiling
Why it is laid out this way
- The room is a T — a 60′ × 24′ bay off the north wall holds the house stage, so the deck costs the banquet nothing.
- The four columns stand off the airwall lines rather than on them, so the centre of any section combination is a clear span.
- All four door vestibules keep their landing: the leaves swing in 3′ pockets recessed out of the room, which is where the hardware actually lives.
What the plan measures
Capacity420 at dinner
SetupRounds of ten + dance floor
Seats placed420
Objects placed95
Event space168′ × 99′, 24′ ceiling
Floor area16,632 ft²
Per seat39.6 ft²
Event typeCatered Meal · Association
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
24points in the traced perimeter
13built features, each with a real height
11typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
