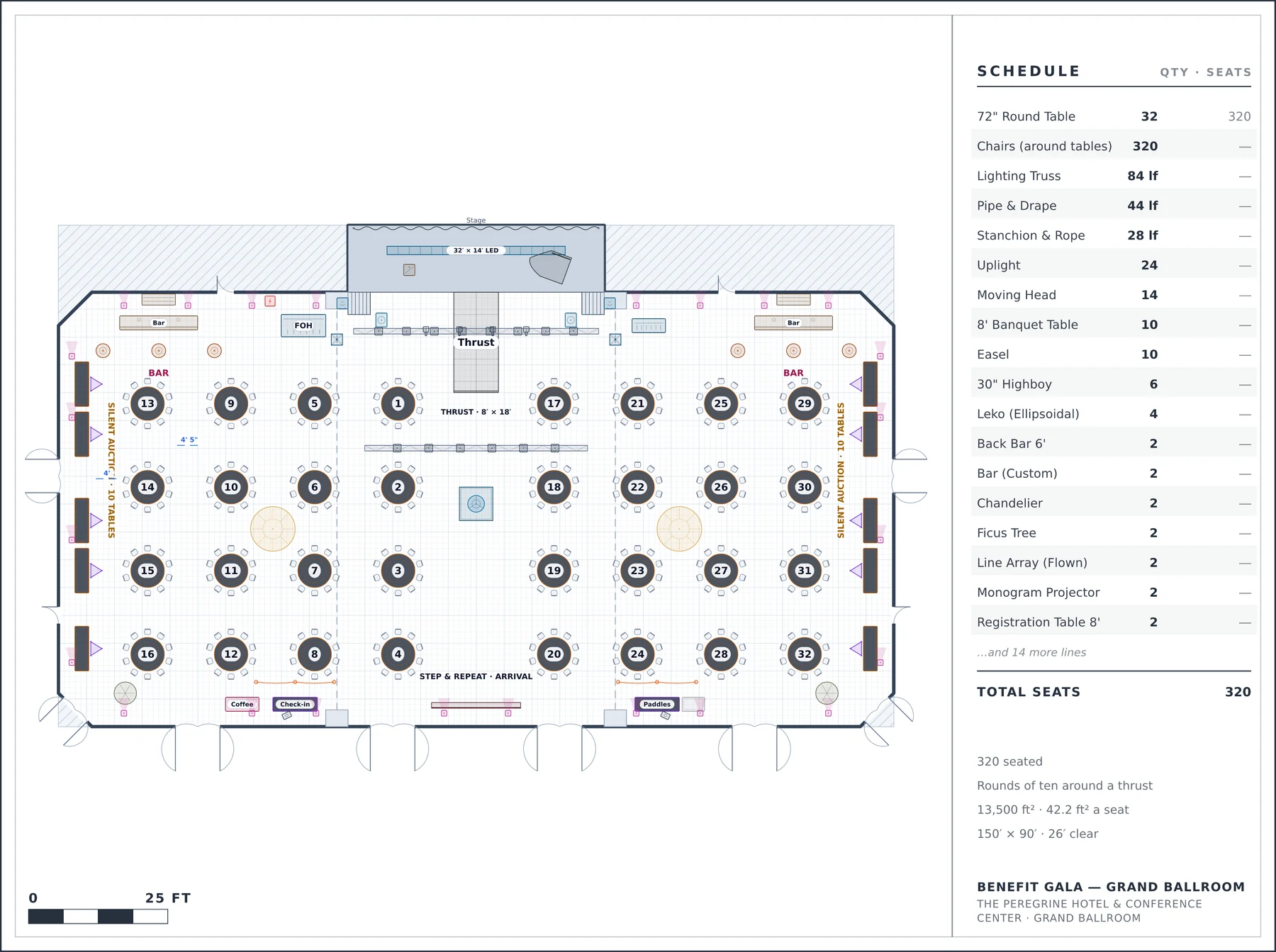

Benefit Gala — Grand Ballroom
320 at dinner, ten auction tables, and a thrust nobody sits behind.
The Peregrine Hotel & Conference Center · Grand Ballroom · 150′ × 90′, 26′ ceiling
Why it is laid out this way
- The silent auction lines both walls with a 4′ browsing aisle — and breaks where the kitchen and service doors need to open.
- An 8′ × 18′ thrust off the venue’s own stage puts the programme inside the room instead of forty feet upstage.
- Arrival is a sequence between the foyer doors: rope line → check-in → paddles → step and repeat.
What the plan measures
Capacity320 seated
SetupRounds of ten around a thrust
Seats placed320
Objects placed135
Event space150′ × 90′, 26′ ceiling
Floor area13,500 ft²
Per seat42.2 ft²
Event typeCatered Meal · Nonprofit
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
12points in the traced perimeter
7built features, each with a real height
12typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
