General Session — Grand Ballroom

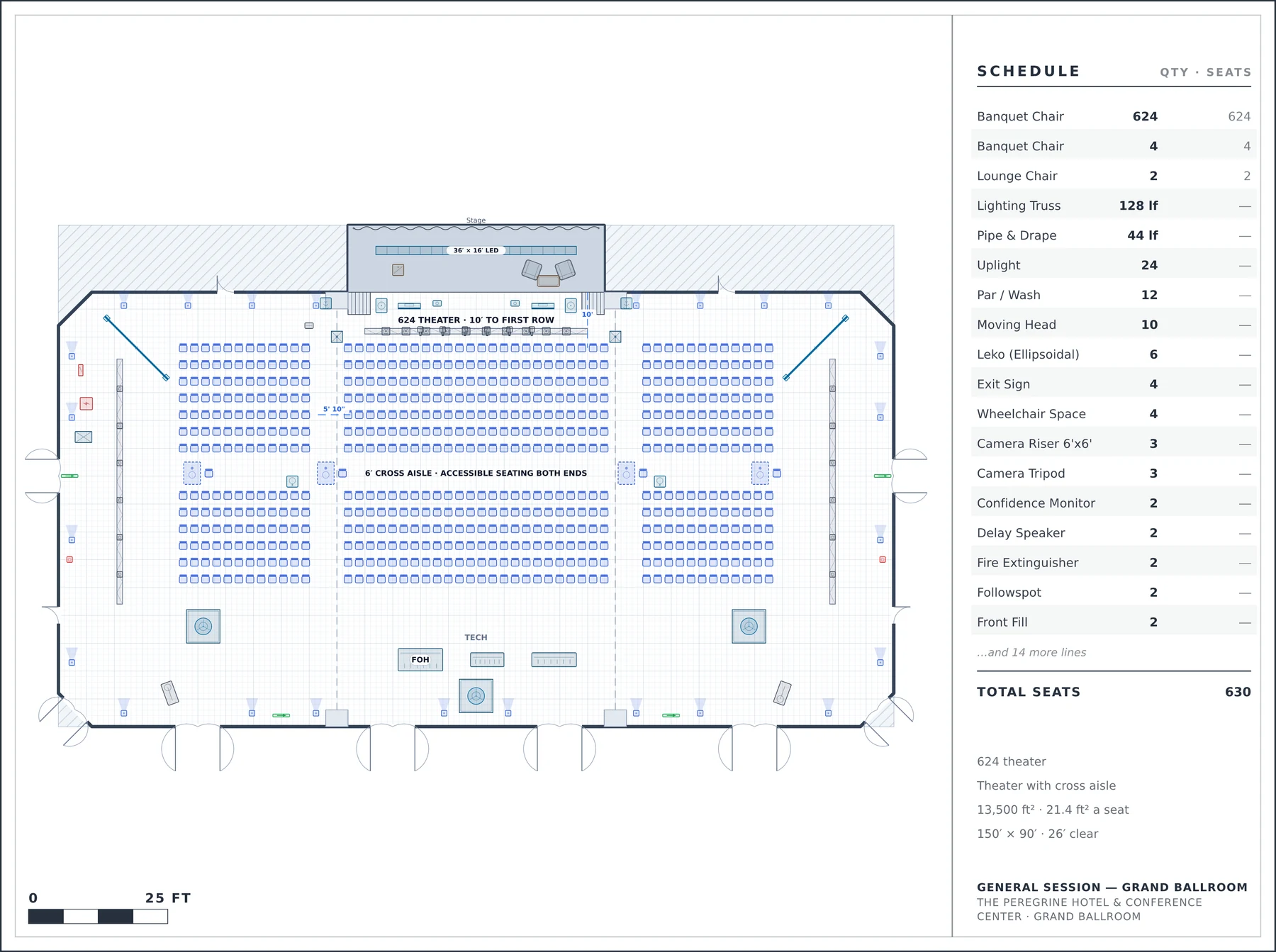

624 theater with 6′ aisles a fire marshal will sign.
The Peregrine Hotel & Conference Center · Grand Ballroom · 150′ × 90′, 26′ ceiling
Why it is laid out this way
- Six live seating blocks — change the chair count and the rows regenerate around the aisles.
- The 36′ × 16′ LED, the lectern and the fireside chairs stand on the ballroom’s own stage; flown arrays, two delay positions and a truss trimmed at 22′ cover the room.
- Accessible seating sits on the cross aisle with a companion chair, not parked at the back.
What the plan measures
Capacity624 theater
SetupTheater with cross aisle
Seats placed630
Objects placed728
Event space150′ × 90′, 26′ ceiling
Floor area13,500 ft²
Per seat21.4 ft²
Event typeConference · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
12points in the traced perimeter
7built features, each with a real height
12typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
