Ceremony — Vineyard Terrace

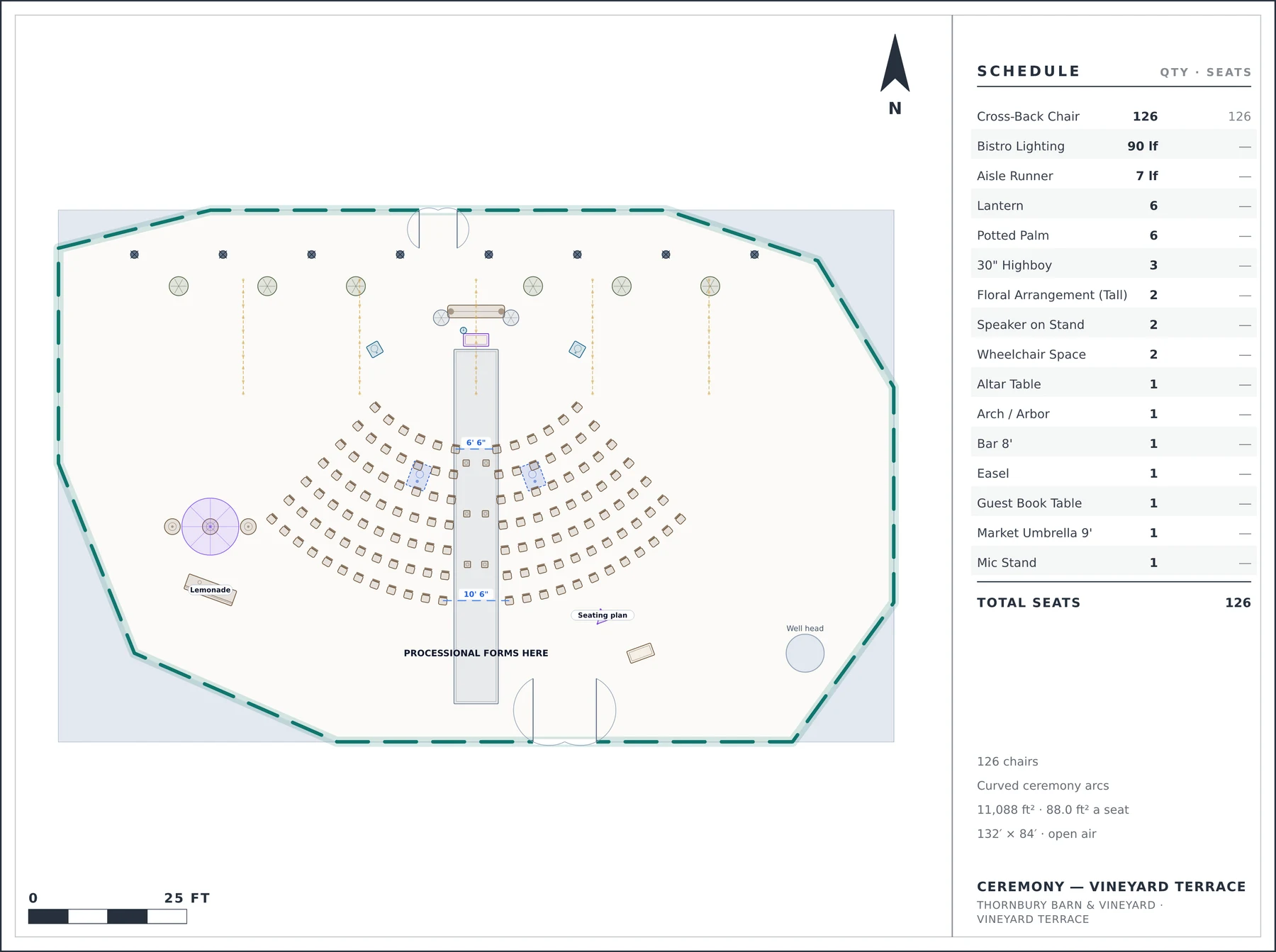

126 chairs on seven arcs, every one of them struck on the arbor.
Thornbury Barn & Vineyard · Vineyard Terrace · 132′ × 84′, open air
Why it is laid out this way
- Every chair sits on an arc centred on the arbor, so the back row faces the couple as squarely as the front row does.
- The aisle is cut by solving each row's start angle from the width the aisle should be there — 6′ 6″ of clear walk at the front row, 10′ 6″ at the back. Cutting it by a fixed angle instead flares it into a 22′ wedge.
- Accessible spaces are at the end of row two on the flattest part of the terrace, with no aisle to cross to reach them.
What the plan measures
Capacity126 chairs
SetupCurved ceremony arcs
Seats placed126
Objects placed160
Event space132′ × 84′, open air
Floor area11,088 ft²
Per seat88.0 ft²
Event typeCeremony · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
10points in the traced perimeter
9built features, each with a real height
2typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: pavers.
