Awards Banquet — Union Ballroom

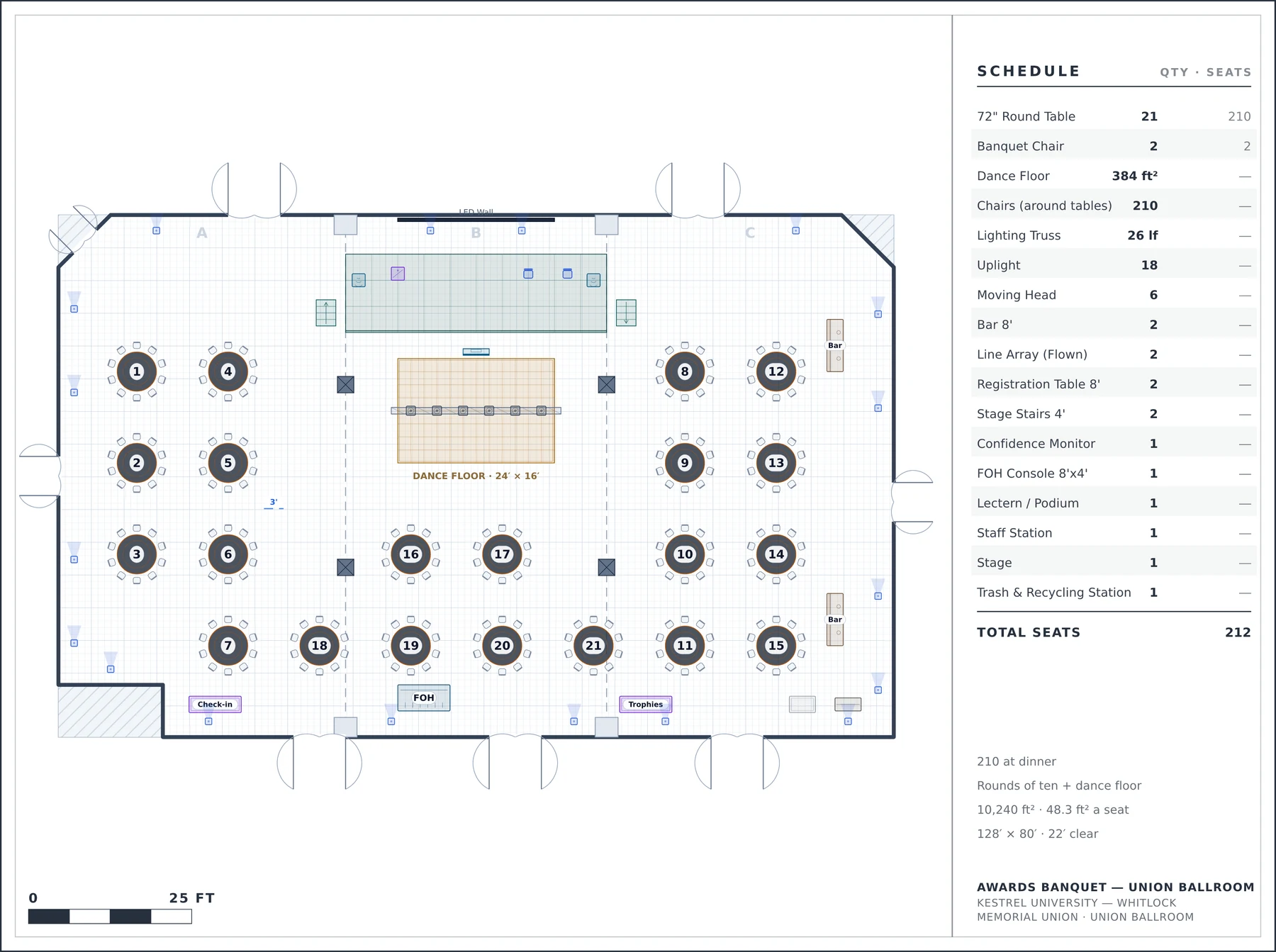

210 at dinner, laid out around four structural columns rather than through them.
Kestrel University — Whitlock Memorial Union · Union Ballroom · 128′ × 80′, 22′ ceiling
Why it is laid out this way
- The rounds sit in the quadrants the four columns define — the two tables a plain grid would have put on a column are simply not in the plan.
- The house LED wall is the backdrop and the stage is 12′ deep in front of it, so nothing is trucked in to build a set the building already has.
- All three south door pairs keep their egress landing with a back row of rounds 11′ away.
What the plan measures
Capacity210 at dinner
SetupRounds of ten + dance floor
Seats placed212
Objects placed63
Event space128′ × 80′, 22′ ceiling
Floor area10,240 ft²
Per seat48.3 ft²
Event typeCatered Meal · Education
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
9built features, each with a real height
8typed doors, with swings
Enclosed room. Floor: carpet. Walls: wallcovering.
