Commencement — Founders Quad

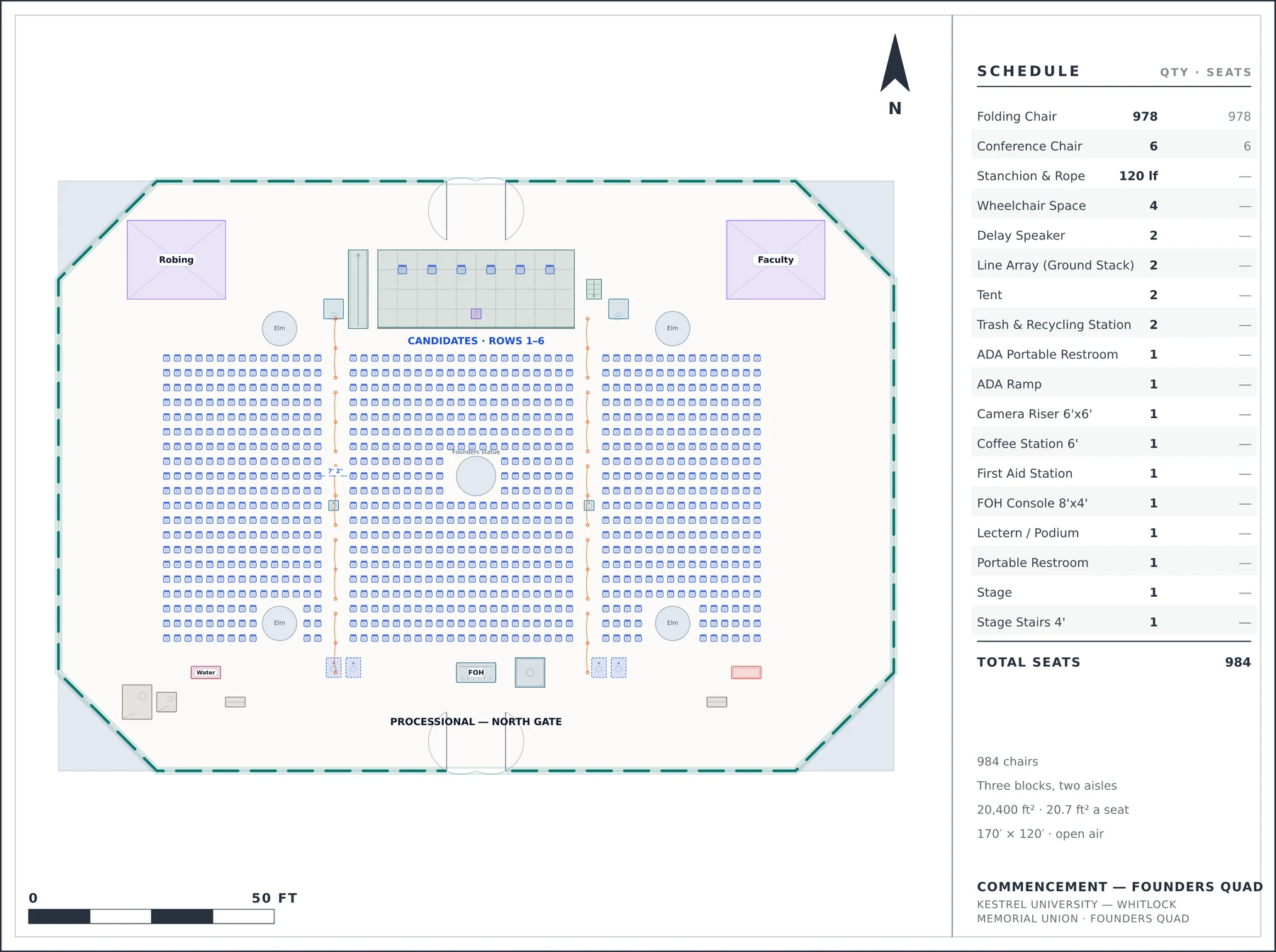

984 chairs on the lawn, placed around a bronze and four elms instead of through them.
Kestrel University — Whitlock Memorial Union · Founders Quad · 170′ × 120′, open air
Why it is laid out this way
- Every chair whose footprint would land on the statue plinth or under an elm is dropped from the field — 36 of them — which is why the count is 984 and not a round thousand.
- The first six rows are the candidates on their own layer, so the marshals can hide the guest field and check only their own block.
- The stage is clear of the north gate's 12′ in-swing, so the procession enters behind the platform party rather than through the audience.
What the plan measures
Capacity984 chairs
SetupThree blocks, two aisles
Seats placed984
Objects placed1,016
Event space170′ × 120′, open air
Floor area20,400 ft²
Per seat20.7 ft²
Event typeCeremony · Education
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
5built features, each with a real height
2typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: lawn.
