Final Exam — Torrey Seminar Hall

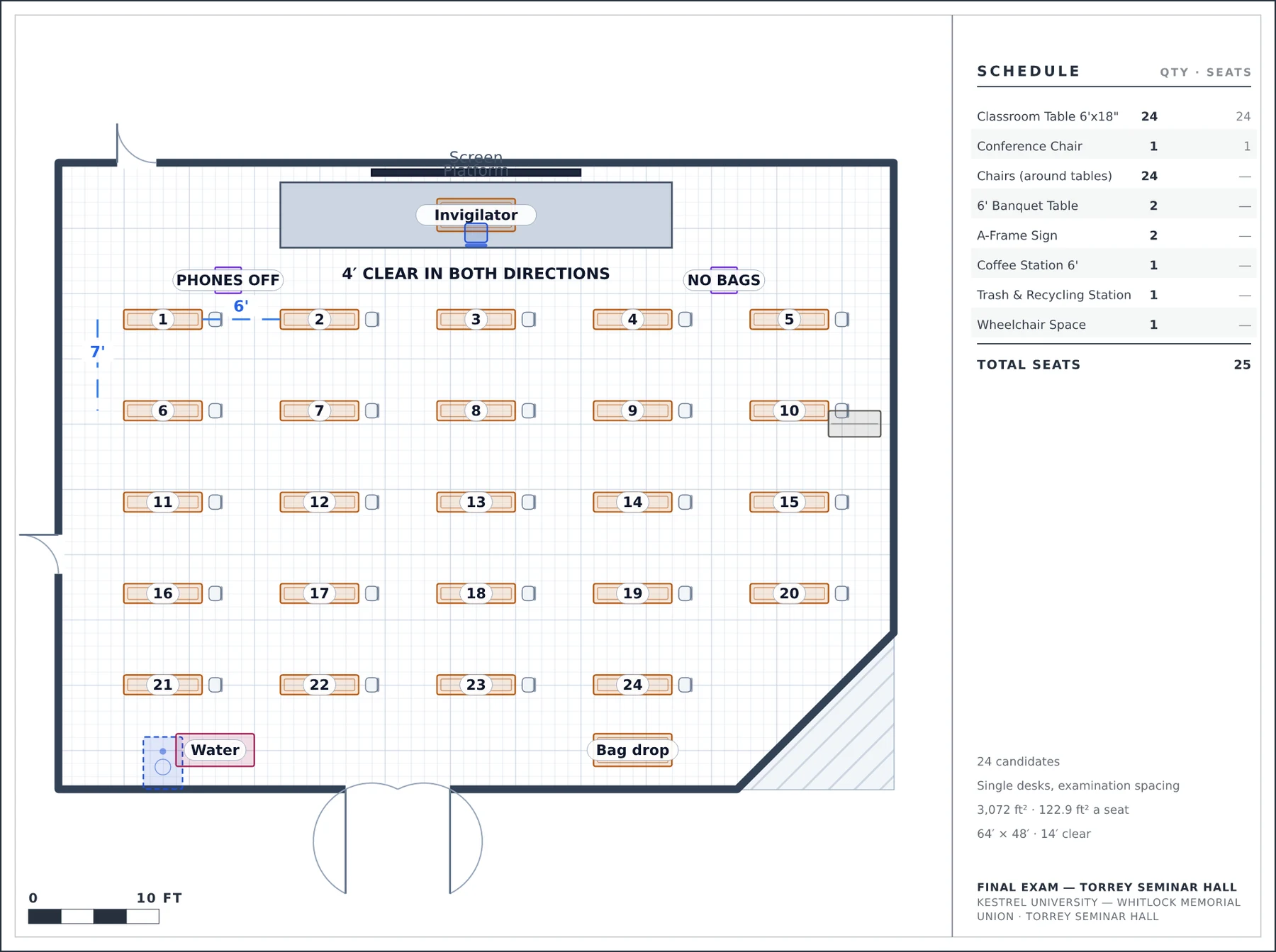

24 candidates at 4′ clear in both directions — the corner decides the last row.
Kestrel University — Whitlock Memorial Union · Torrey Seminar Hall · 64′ × 48′, 14′ ceiling
Why it is laid out this way
- Every desk is a single 6′ table with one chair, on a 12′ × 7′ pitch — the geometry that leaves 4′ of clear floor between candidates in both directions.
- The angled south-east corner cuts the back row to four desks. The plan says 24, not 25, because the room does.
- Bag drop and water are BEHIND the last row, so no candidate walks past a desk in progress to reach either.
What the plan measures
Capacity24 candidates
SetupSingle desks, examination spacing
Seats placed25
Objects placed32
Event space64′ × 48′, 14′ ceiling
Floor area3,072 ft²
Per seat122.9 ft²
Event typeClass/Lecture · Education
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
5points in the traced perimeter
2built features, each with a real height
3typed doors, with swings
Enclosed room. Floor: carpet. Walls: paint.
