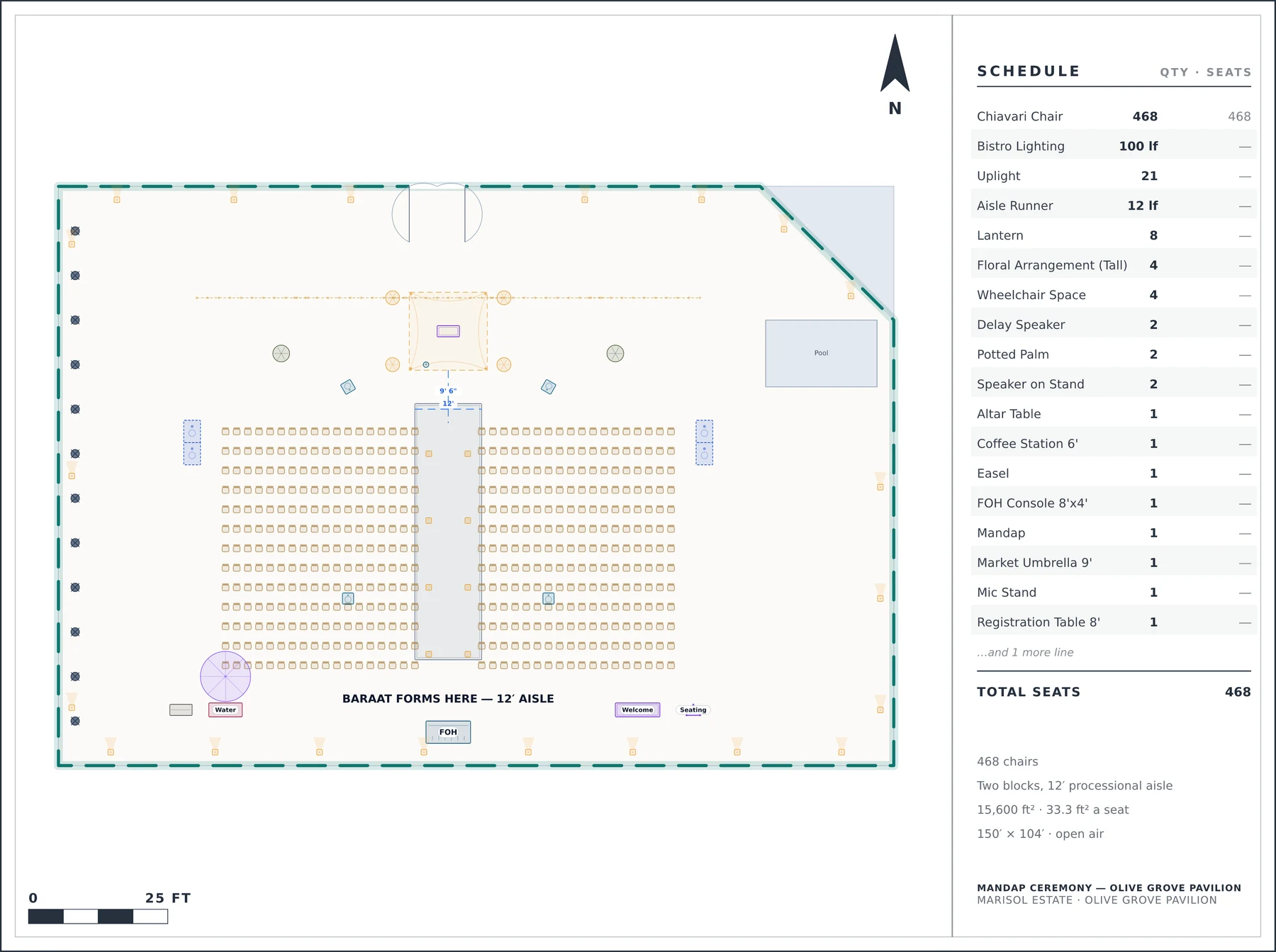

Mandap Ceremony — Olive Grove Pavilion
468 chairs around a mandap, with a 12′ aisle the baraat can actually arrive down.
Marisol Estate · Olive Grove Pavilion · 150′ × 104′, open air
Why it is laid out this way
- A 12′ processional aisle rather than 6′ — the baraat arrives down it with a dhol and a crowd, and 6′ turns a procession into a queue.
- The mandap is set 14′ off the front row: close enough to see into the structure, far enough that the first rows are not looking straight up at it.
- Delay speakers at the halfway point, because the back row is 90′ from the couple and one pair of mains does not carry a ceremony that far.
What the plan measures
Capacity468 chairs
SetupTwo blocks, 12′ processional aisle
Seats placed468
Objects placed526
Event space150′ × 104′, open air
Floor area15,600 ft²
Per seat33.3 ft²
Event typeCeremony · Social
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
5points in the traced perimeter
13built features, each with a real height
1typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: lawn.
