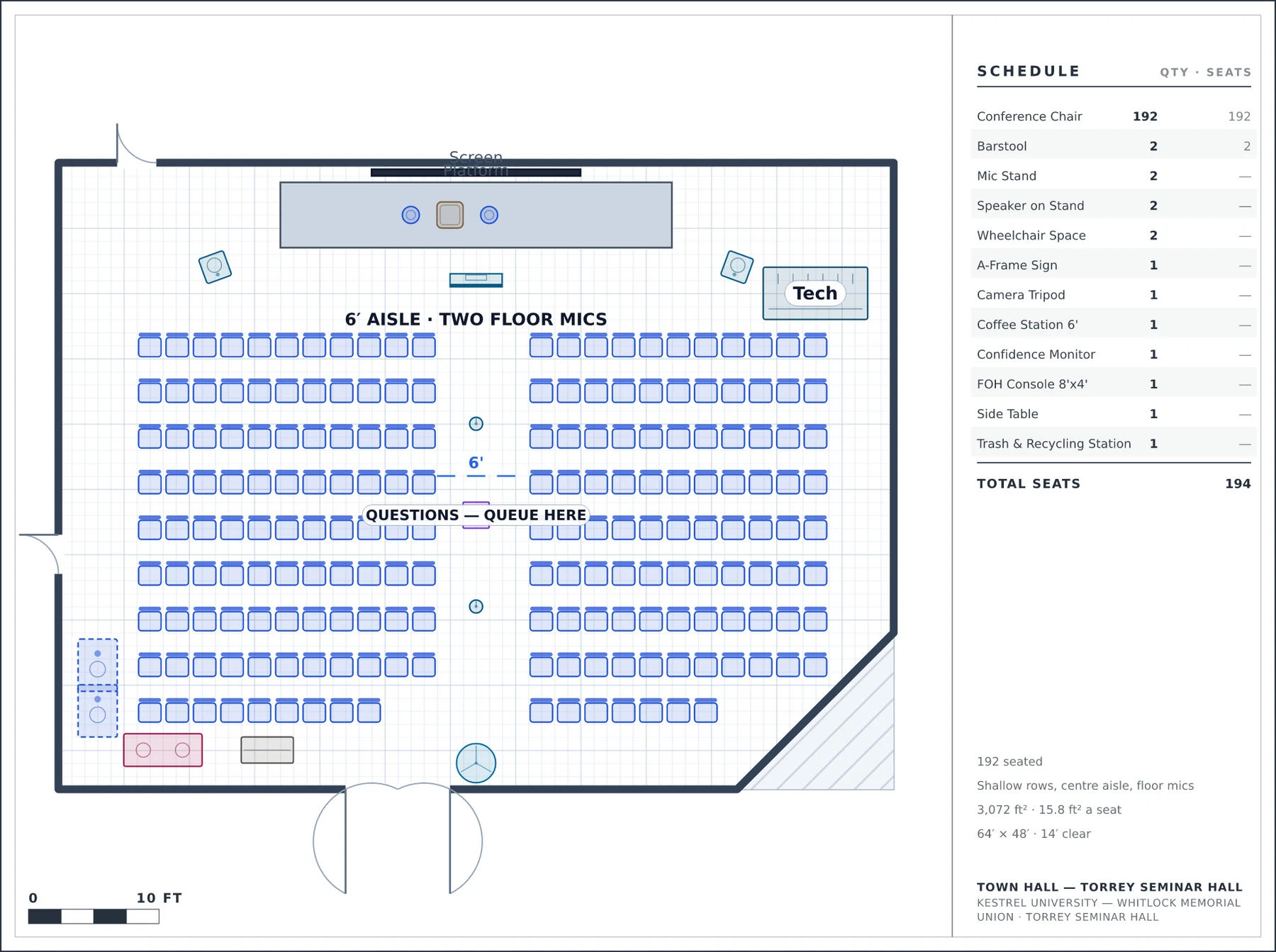

Town Hall — Torrey Seminar Hall
192 in nine shallow rows, drawn around the question queue rather than the slides.
Kestrel University — Whitlock Memorial Union · Torrey Seminar Hall · 64′ × 48′, 14′ ceiling
Why it is laid out this way
- Two floor mics stand ON the 6′ centre aisle, so the question queue forms where everyone can see it instead of in a corner by the door.
- Nine shallow rows rather than fourteen deep ones: the back row is 40′ from the panel, close enough that an answer does not need a microphone to feel personal.
- Two stools and a side table instead of a lectern — nobody asks a hard question of a lectern.
What the plan measures
Capacity192 seated
SetupShallow rows, centre aisle, floor mics
Seats placed194
Objects placed207
Event space64′ × 48′, 14′ ceiling
Floor area3,072 ft²
Per seat15.8 ft²
Event typeConference · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
5points in the traced perimeter
2built features, each with a real height
3typed doors, with swings
Enclosed room. Floor: carpet. Walls: paint.
