Breakout — Vellum Studio

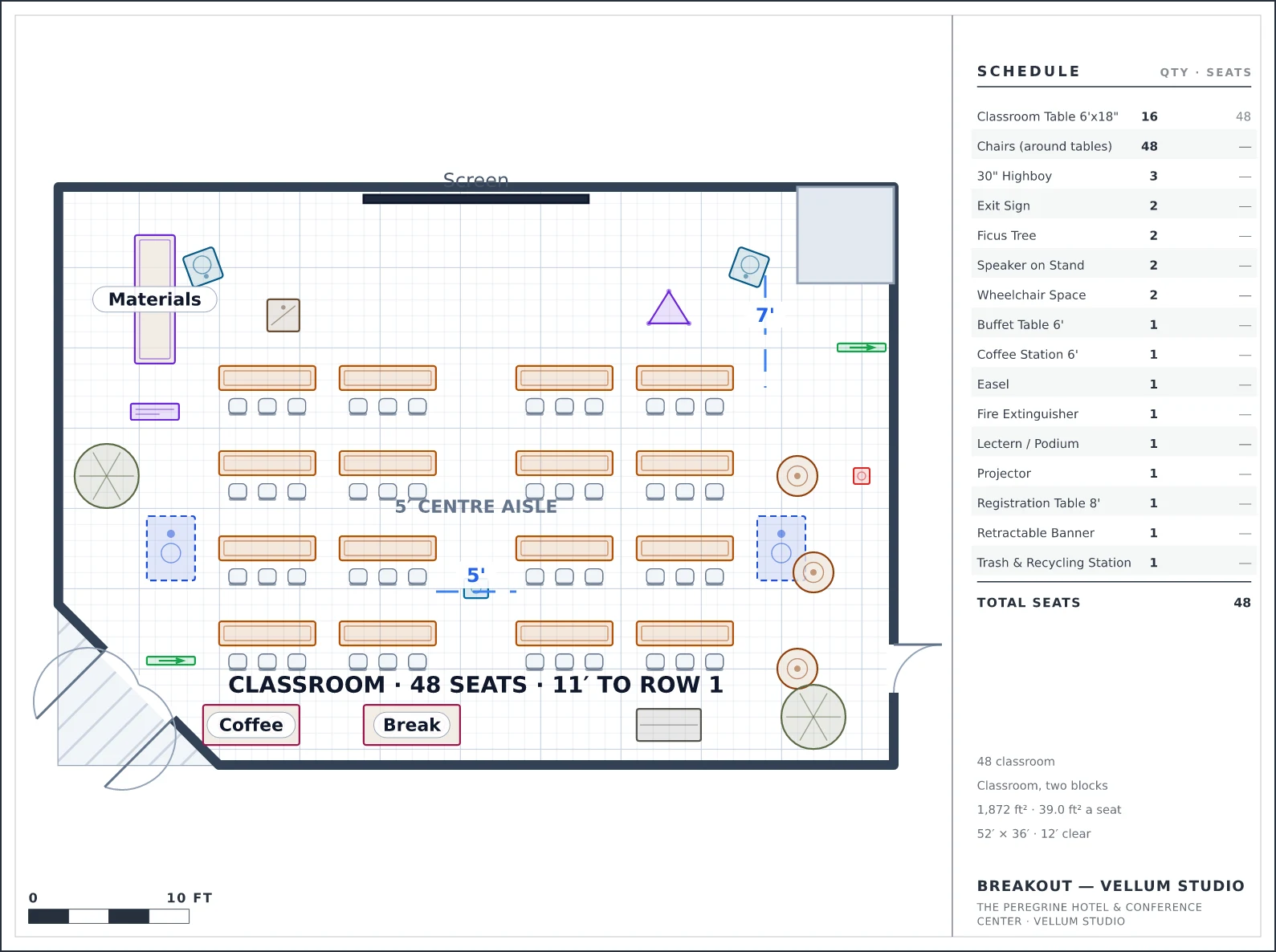

48 in classroom, with every clearance a conference services manager checks.
The Peregrine Hotel & Conference Center · Vellum Studio · 52′ × 36′, 12′ ceiling
Why it is laid out this way
- 5′ centre aisle, 3′ 6″ from chair back to the next table, 11′ from the room’s built-in screen to row one.
- Refreshments live at the back so a late coffee never crosses the presenter.
- One accessible position per block, on the outside aisle — a gap in the row, not a chair pulled out of it.
What the plan measures
Capacity48 classroom
SetupClassroom, two blocks
Seats placed48
Objects placed36
Event space52′ × 36′, 12′ ceiling
Floor area1,872 ft²
Per seat39.0 ft²
Event typeTraining · Corporate
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
5points in the traced perimeter
2built features, each with a real height
2typed doors, with swings
Enclosed room. Floor: carpet. Walls: paint.
