Homecoming Tailgate — Founders Quad

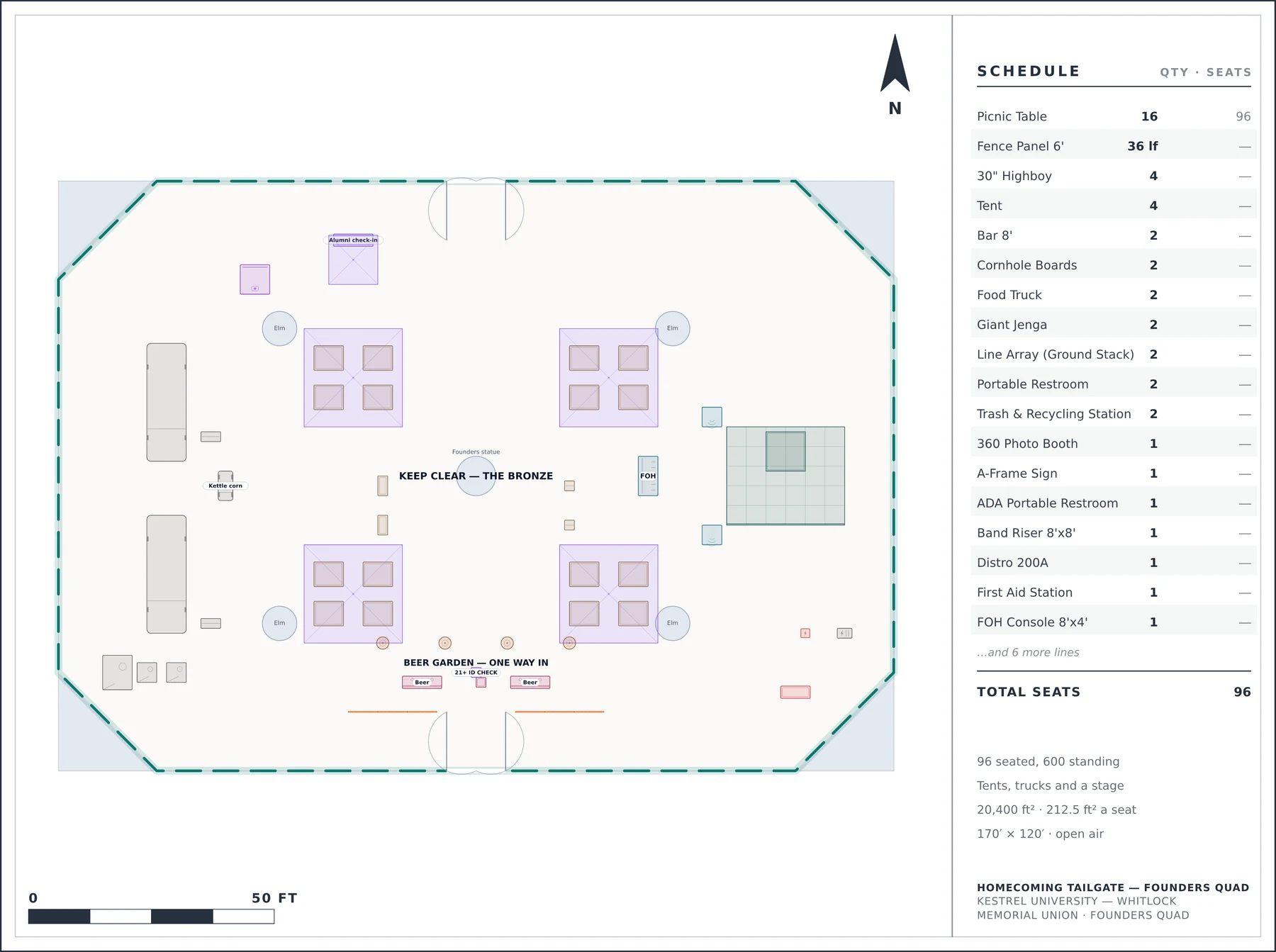

The commencement lawn as a tailgate: four tents, two trucks and a fenced beer garden.
Kestrel University — Whitlock Memorial Union · Founders Quad · 170′ × 120′, open air
Why it is laid out this way
- The same quad as the commencement plan, with the same four elms and the same bronze — a second diagram of one space, not a second space.
- The beer garden is fenced with a single controlled entrance, because that is what a licence on a campus lawn actually requires.
- The centre of the quad is deliberately empty: the bronze is what everybody photographs, and the tents sit in the quarters around it.
What the plan measures
Capacity96 seated, 600 standing
SetupTents, trucks and a stage
Seats placed96
Objects placed57
Event space170′ × 120′, open air
Floor area20,400 ft²
Per seat212.5 ft²
Event typeAthletic Event · Education
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
8points in the traced perimeter
5built features, each with a real height
2typed doors, with swings
Open ground — the perimeter is a property line, not a wall. Floor: lawn.
