Council Meeting — Guild Room

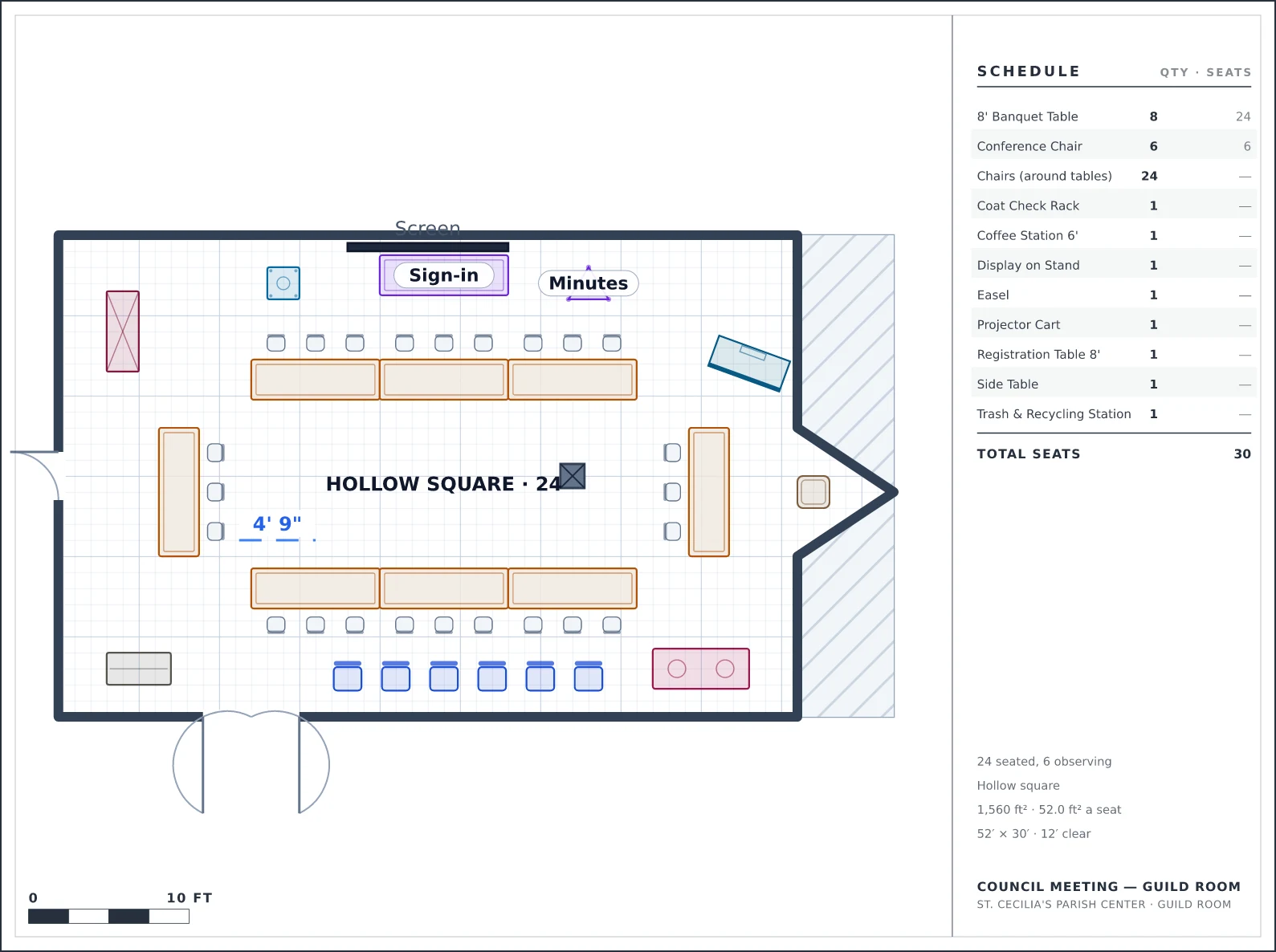

24 around a hollow square, sized so the pier lands in the middle of it.
St. Cecilia's Parish Center · Guild Room · 52′ × 30′, 12′ ceiling
Why it is laid out this way
- The square is sized so the room's pier stands in the empty middle of it — a column inside a hollow square costs nothing, whereas a square centred on the room would seat two members behind it.
- Chairs on the outside faces only, which is what a hollow square is; the inside of the square stays empty for the cabling and the chair's papers.
- Six observer chairs sit behind the square: a parish council meeting is open, and the public needs somewhere that is not inside the square.
What the plan measures
Capacity24 seated, 6 observing
SetupHollow square
Seats placed30
Objects placed22
Event space52′ × 30′, 12′ ceiling
Floor area1,560 ft²
Per seat52.0 ft²
Event typeExecutive Meeting · Religious
The room it is drawn in
The event space is surveyed once and every diagram of it inherits this. It is why the plan above can be checked at all.
7points in the traced perimeter
2built features, each with a real height
2typed doors, with swings
Enclosed room. Floor: carpet. Walls: paint.
